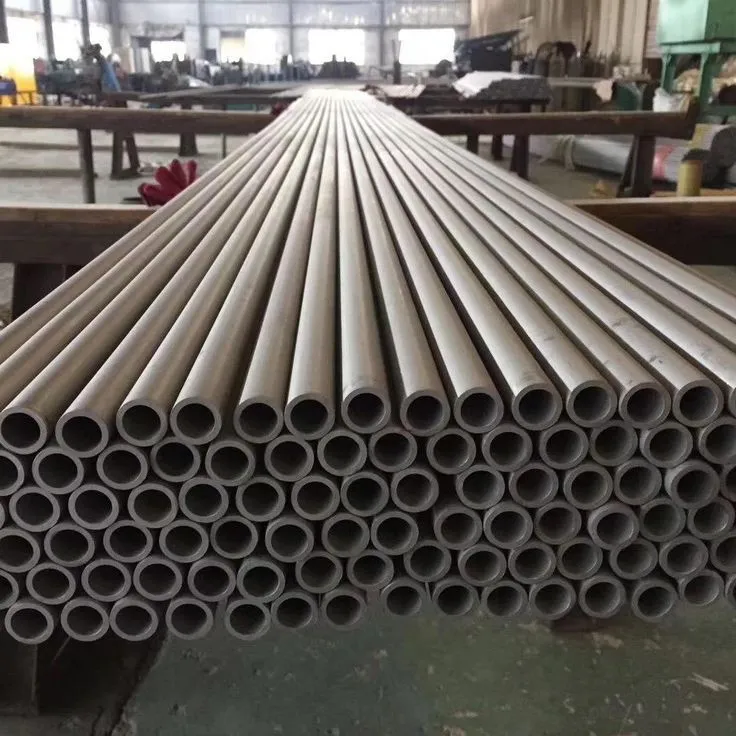

Monel 400 Vs. Monel K500 Tube - Which One is Best for You

The choice between Monel 400 and Monel K500 tubes rests on the mechanical needs of your product and the environment in which it will be used. Both nickel-copper metals are very resistant to corrosion, but their strength and stiffness are very different. Monel K500 tube is different because it can precipitation-harden, giving it a tensile strength of up to 1100 MPa compared to 550 MPa for Monel 400. If your project needs better mechanical performance and defense against corrosion, like in propeller shafts for ships or structural parts for spacecraft, K500 is the best solution. Monel 400, on the other hand, works really well in places where good fabricability is important and mild stress is present, like chemical handling pipes. Knowing these differences helps buying managers choose the metal that meets performance needs and will work reliably for a long time.

Understanding Monel 400 and Monel K500 Tubes

Chemical Composition and Alloying Differences

Both metals are made up of a nickel-copper structure, with nickel making up 63-67% and copper making up 27-33%. Adding aluminum and titanium to Monel K500 makes it different from other materials. These elements allow age-hardening through γ' phase precipitation (Ni3Al and Ni3Ti intermetallic compounds), which makes the material much stronger without making it less resistant to rusting. Because its structure is simpler, Monel 400 is more flexible and easier to weld. This difference in makeup has a direct effect on how the product is made and whether it is suitable for the end use.

Because Monel K500 has aluminum and titanium in it, it needs to be heated carefully. To get the best hardness, around HRC 35, manufacturers usually solution-anneal the material at 980–1010°C and then age it at 590–650°C. The managed precipitation hardening makes a material that can handle more mechanical stress. On the other hand, Monel 400 stays in an annealed state, which makes it better for cold working, which is something that many manufacturers like when they need to make complex shapes.

Mechanical Properties Comparison

When you look at performance data under controlled conditions, you can see the technical differences between these metals. The precipitation-hardened structure of Monel K500 tube makes it much stronger while still being easy to work with. After the right amount of age, the normal tensile strength is over 1100 MPa and the normal yield strength is over 790 MPa. In contrast, Monel 400 has a tensile strength of about 550 MPa and a yield strength of about 240 MPa when it is annealed.

Measuring hardness shows another important difference. Monel K500 that has been age-hardened usually has an HRC of 30 to 35, which means it is very resistant to wear and galling in slide contact uses. The hardness of Monel 400 is between HRB 65 and 85, making it good for uses where high hardness isn't needed but formability is. These mechanical properties have a direct effect on the choice of material for certain business problems.

Corrosion Resistance and Temperature Limits

Because they are made of nickel and copper, both metals are very resistant to seawater, hydrofluoric acid, and alkaline conditions. The passive oxide film that forms on these surfaces stops pitting and crevice corrosion, even when they are exposed to chloride-rich media for a long time. When choosing materials for offshore platforms and subsea tools, marine experts put this quality at the top of their list.

The two grades have slightly different temperature ranges. Corrosion doesn't happen to Monel 400 at very low temperatures (near -240°C) or high temperatures (about 540°C). This upper limit is raised to about 650°C for Monel K500 while keeping its stronger substructure. But Monel K500 can lose its strength if it is exposed to temperatures above 480°C for a long time. When these things are used in high-temperature chemical processing or to make thermal power, they need to be thermally stable.

Comparing Performance: Monel 400 vs. Monel K500 Tubes

Strength and Durability Under Industrial Stress

To prove that these metals work in the real world, you need to know how they react to long-term operating stress. The precipitation-hardened structure of Monel K500 tube doesn't deform easily when loaded and unloaded many times, which makes it perfect for spinning parts like pump shafts and turbine blades. Testing for fatigue shows that Monel K500 can withstand millions of stress cycles without cracking, which is a very important quality for aircraft landing gear parts.

The fact that Monel 400 isn't as strong doesn't make it less useful in some situations. It is very resistant to stress-corrosion breaking in places with sulfuric acid and caustic solutions, which is good for chemical processing plants. Because the material is flexible, it can handle mechanical shocks without breaking. This is especially important in pipe systems that experience changes in pressure. Monel 400 is often chosen by refineries for heat exchanger tubes that deal with toxic streams at low pressures.

Application Areas Across Industries

Monel K500 is often used by aerospace and military companies for tasks that need very high strength-to-weight ratios. The metal is good for aircraft fasteners, structural frames, and hydraulic system parts because it is not magnetic and works well at all temperatures. The material's approval to aircraft standards makes sure that it can be tracked and meets the quality standards that QA teams require.

When it comes to marine and offshore building jobs, both metals play different roles. Shipbuilders use Monel K500 seamless tubes for parts of pumps and propellers that need to be very strong when twisting. For seawater cooling systems on offshore platforms, designers choose Monel 400 welded pipes because they are easy to work with because they can be cut and soldered. Both materials don't let biofouling happen and keep their shape even when they're constantly exposed to saltwater.

Supply Chain and Market Considerations

Buying plans for these specific metals are greatly affected by changes in the global supply chain. Production is mostly based in well-known production areas like North America, Europe, and Asia. TSM Technology keeps a large collection of products that meet a wide range of standards. This lets them offer flexible delivery times that keep project delays to a minimum. We can make seamless tubes with outside sizes between 6 and 114 mm and wall thicknesses between 0.5 and 15 mm, which is in line with ASTM B163/ASME SB163 guidelines.

Lead times depend on the type of product and how complicated the specifications are. Standard-sized seamless tubes can usually be shipped within an acceptable amount of time from stock, but custom-sized welded designs may need more time to be made. Getting suppliers involved early in the planning stages of a project is good for procurement workers because it gives enough time for getting materials, trying them, and coordinating deliveries.

Market supply changes based on the cost of raw materials and how much of the production capacity is being used. Base material costs are affected by changes in the prices of nickel and copper, but large-volume buyers can keep costs stable with long-term supply deals. There are often minimum order amounts, especially for sizes or heat treatment conditions that aren't common. Building ties with experienced suppliers gives you access to technical help and allows you to make flexible buying plans that fit the needs of your project.

How to Decide Which Tube is Right for Your Project

Aligning Material Properties with Project Requirements

A thorough study of the needs is the first step in choosing the right materials. Engineering teams need to write down the working pressures, temperature ranges, types of toxic media, and how long they think the equipment will last. When design estimates show stress levels that are too high for Monel 400, Monel K500's higher strength becomes necessary. The higher yield strength of Monel K500 is especially helpful for parts that are loaded in all three directions at the same time (tension, compression, and twisting).

When more than one material meets the practical needs, a study of the corrosion environment helps choose the alloy. Both grades can handle seawater and most acids, but in some situations, one might work better than the other. Monel K500 is sometimes needed in highly acidic settings because it has slightly better passivation properties. When hydrogen sulfide is present, reducing conditions don't make a big difference between the two metals; they both stay strong in those circumstances.

Temperature profiles throughout operational cycles influence long-term material performance. Monel K500 tube's structural stability and ability to keep its hardness across temperature changes make it useful for equipment that goes through a lot of thermal cycles. Continuous high-temperature service close to the upper working limits needs a careful comparison of the effects of over-aging on Monel K500 versus the stability of Monel 400's microstructure. Either metal can be used in cryogenic conditions, but Monel K500 is stronger, so it can have thinner walls and weigh less.

Evaluating Cost-Performance Trade-offs

The cost of materials is one part of the total cost of ownership. Monel K500 tube costs more than other metals because it needs to be heat treated and has extra alloying elements added to it. But this initial investment usually pays off over time because it means longer service gaps and less upkeep needs. Parts that don't need to be replaced for decades are worth spending more on up front than parts that need to be replaced more often with lower-quality options.

The cost of fabrication adds another input to economic research. When complex forms need to be cold worked, Monel 400's excellent formability cuts down on production labor and tool wear. Both metals need to be welded correctly, but because Monel 400 doesn't have any elements that strengthen over time, it doesn't need as much heat treatment after the welding process. Shops that know how to do precipitation-hardening can work with Monel K500 easily, but shops that don't know how to do heat treatment will find Monel 400 more useful.

Maintenance Planning and Long-term Costs

Planning for maintenance has a big effect on estimating long-term costs. When equipment breaks down because of wear or stress, the costs of downtime are higher than the costs of the materials. Because Monel K500 doesn't gall or fret, it requires less upkeep in spinning machinery and threaded connections. When used according to the manufacturer's instructions, Monel 400 piping systems work reliably and require little maintenance. This makes them a good choice for large setups.

Supplier Reliability and Technical Support

Working with well-known makers guarantees that the materials are real and that the standard is always the same. Suppliers with a good reputation have strict quality control programs that include non-destructive testing procedures and positive material identification (PMI) research. TSM Technology's certification to ASTM B165/ASME SB165 standards makes sure that the products meet the requirements of the specifications. This gives procurement teams the recorded traceability they need for important uses.

Experienced sellers are different from commodity vendors because they can offer technical help. When choosing materials and making specifications for complex uses, it's helpful to have technical advice. We give you advice on how to get the most out of heat treatment in the solution state, the melting state, or the aging state so that it works perfectly in your specific circumstances. Our manufacturing services, which include cutting, welding, and bending, let customers get finished parts instead of raw tubes that need to be further fabricated.

Procurement Insights for Monel K500 and Monel 400 Tubes

Sourcing from Certified Manufacturers

Quality control starts with making sure the provider is qualified and that their credentials are valid. Materials engineers should check that the manufacturer follows ISO 9001 quality management systems and any other standards that are important to their business. Suppliers in the aerospace industry must show that they comply with AS9100, while 10CFR50 Appendix B approval is needed for nuclear uses. These certifications make sure that sellers follow written processes for controlling materials, testing them, and keeping track of them.

Mill test reports (MTRs) are important records that show the chemical make-up and mechanical qualities of a substance. Specifications for buying things should make it clear that MTRs must be approved by qualified metallurgists and include heat numbers that can be used to track back to the original production runs. Ultrasonic (UT) and radiographic (RT) testing are examples of advanced testing methods that can find internal discontinuities that can't be seen with the naked eye. This is very important for uses that need to control pressure.

When geographical buying is used, cost benefits are balanced with quality guarantee and supply security. Aerospace and defense companies like that the US has strict manufacturing standards and strong intellectual property rights. Along with strong quality practices, European producers are close enough to help with local tasks. Asian makers offer reasonable prices and are adopting foreign quality standards more and more. Diversified buying strategies keep quality standards high across all lines of procurement while reducing the impact of supply disruptions.

Negotiating Terms and Custom Requirements

To negotiate well, you need to know how the market works and what the seller can do. A lot of the time, promises to buy in bulk lead to better prices and earlier schedules for production. Annual blanket purchase orders with planned releases let sellers see how much demand there is, which helps them plan production more efficiently and lowers the costs that customers have to pay. Long-term partnerships are good for both parties because they lower transaction costs and make communication better.

Custom size standards make things more complicated and need to be communicated clearly. When outside sizes, wall thicknesses, or lengths are not standard, they need to be made in a certain way. Our seamless pipe, welded pipe, and thin-wall pipe products, including Monel K500 tube, can all be customized by TSM Technology. We can make pipes with outer sizes from 6 mm to 500 mm and wall thicknesses from 0.5 mm to 30 mm upon request. For some width and wall pairs, the longest length that can be used is 15,000 mm, which can be adjusted to fit different project shapes.

Quality Verification and Acceptance Testing

The delivery terms have a big effect on the project's cash flow and the amount of operating capital it needs. When doing business across international borders, people usually use Incoterms to spell out who is responsible for shipping, insurance, and clearing customs. Ex Works (EXW) pricing puts the most responsibility for logistics on the customer, while Delivered Duty Paid (DDP) terms make getting easier but raise supplier costs, which are mirrored in pricing. When choosing the right Incoterms for their deals, procurement teams should look at how well the processes work.

Receiving checking methods keep non-conforming materials from getting into production. Visual inspection finds flaws on the surface, measures make sure that the diameter and wall thickness are within acceptable ranges, and PMI analysis proves the alloy's makeup. Smart buyers use statistical sample plans that are based on the size and importance of the lot, weighing the cost of checking against the chance that a defect will get through.

The needs for mechanical tests rely on how important the application is and what the specifications say. Yield strength, maximum tensile strength, and elongation qualities are all checked by tensile tests. Testing for hardness shows that the heat treatment of Monel K500 tubes was done correctly. The ASTM G48 Method A (ferric chloride pitting test) for corrosion checks for resistance to limited attack. Hydrostatic pressure testing makes sure that tubes are safe for use in pressure-service uses.

Keeping records helps with tracking throughout the lifecycles of components. For aerospace and nuclear uses, records must be kept permanently so that service breakdowns can be looked into. Digital documentation systems make it easier to keep track of records and make sure they can be accessed during audits or investigations into failures. In buy orders, procurement teams should make it clear what kinds of paperwork are needed, and sellers should be required to provide full material certifications and test results.

Conclusion

When deciding between Monel 400 and Monel K500 tube, you need to carefully think about the technical needs, the corrosion conditions, and the cost. Precipitation hardening gives Monel K500 its high strength, which makes it essential for high-stress uses in aircraft, marine power, and tough industrial equipment. Monel 400 is readily workable and consistently resistant to corrosion in moderate-stress settings, especially in chemical processes and general naval uses. Partnering with certified makers who offer stable quality, technical knowledge, and quick help during the material selection and buying process is key to successful procurement.

FAQ

1. What are the main mechanical differences between Monel 400 and K500 tubes?

With the addition of aluminum and titanium, precipitation hardening makes Monel K500 tube about twice as strong as Monel 400 in terms of tensile strength. Monel K500 has a tensile strength of 1100 MPa after the right age-hardening process, while Monel 400's is only 550 MPa. Because it is stronger, Monel K500 is better for high-load uses like pump shafts and bolts. On the other hand, Monel 400 is better for uses that need to be cold-formed and made in a complex way.

2. Can both alloys withstand seawater environments equally?

Because they are made of nickel and copper, both metals are very resistant to rust in salt water. They can handle pitting, crevice corrosion, and stress-corrosion cracks in saltwater. The choice between them is based on how well they handle mechanical loads rather than how well they handle rust in normal saltwater service. Marine experts choose based on the power that is needed. For example, Monel K500 is used for high-stress parts and Monel 400 is used for pipes and structure parts.

3. How can I be sure that the stuff my sources give me is real Monel?

Real Monel products have official mill test records that show their chemical make-up and mechanical qualities. Reliable sellers keep their certifications up to date and use heat numbers to make it easy to track down materials. Portable PMI testers used for on-site checks prove the presence of nickel and copper. Buying from well-known companies with quality approvals and a good name in the industry lowers the risk of getting fake goods.

Partner with TSM Technology for Premium Monel K500 Tube Solutions

TSM Technology is a reliable Monel K500 tube source that has been working with the aircraft, marine, petrochemical, and power generation businesses around the world for 14 years. In our large collection, we have both seamless and welded options that meet ASTM B163/ASME SB163 standards. We can also make the sizes and heat treatments better to fit your exact needs. Each tube goes through strict PMI analysis and non-destructive testing to make sure it meets the high standards for corrosion protection and mechanical performance needed for your most important uses. Email our engineering team at info@tsmnialloy.com to talk about your project needs and get a thorough quote backed by our dedication to quality, on-time global shipping, and low prices.
