Pulp and Paper Industry: Inconel 686 Applications in Bleaching Stages

The wood and paper business needs special materials that can handle the harsh chemicals used in bleaching processes. The use of Inconel 686 in these important stages has greatly improved operating effectiveness by making it more resistant to corrosion and stable at high temperatures. When these high-performance superalloy parts, especially the Inconel 686 flange configurations, are exposed to harsh cleaning chemicals like chlorine dioxide, hydrogen peroxide, and ozone, they last longer than any other material. Their special mix of nickel, chromium, molybdenum, and tungsten makes a protective passive layer that keeps the structure intact even in the harshest oxidizing conditions. This makes them essential for modern pulp production plants that want to be more productive and have less maintenance downtime.

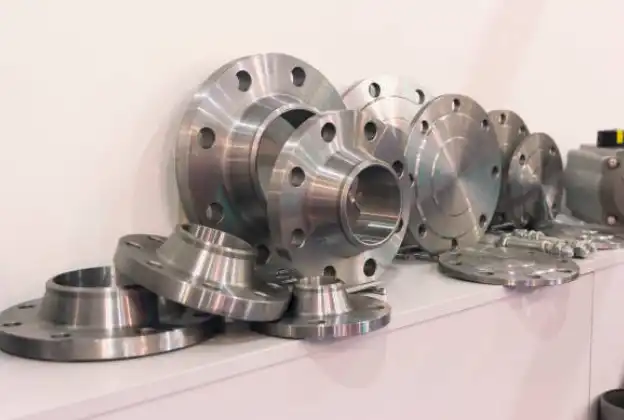

Understanding Inconel 686 Flanges and Their Role in Bleaching Stages

Some of the most corrosive conditions in industrial processing are found in the bleaching steps of making pulp and paper. There are situations where normal materials can break down quickly, including high temperatures, harsh chemicals, and constant changes in pressure. These problems can be solved by Inconel 686 flanges, which have great mechanical qualities and are designed to be resistant to chemical attack.

Chemical Composition and Protective Mechanisms

Inconel 686 works better than other metals because its chemicals are carefully controlled. This nickel-based superalloy is made up of about 57% nickel, 20.5% chromium, 16.5% molybdenum, and 3.7% tungsten. These elements work together to make the alloy more resistant to rust than any one element alone. The high amount of molybdenum and tungsten makes it very resistant to reducing environments. The chromium creates a solid oxide layer that guards against oxidizing environments.

During cleaning, these lips keep their shape even when they are exposed to chlorinated chemicals, acidic solutions, and temperatures between room temperature and 200°C in Inconel 686 flange. The thick passive film that forms on the surface keeps growing back, giving it self-healing qualities that make it last much longer than standard stainless steel options.

Mechanical Properties in Bleaching Environments

When put through the tough conditions of cleaning steps, TSM Technology's Inconel 686 flanges show amazing mechanical stability. With a tensile strength of more than 655 MPa and a yield strength of more than 310 MPa, these parts keep their shape even when pressure changes and temperatures rise and fall. Because the material is very flexible (its stretch values can reach 40%), it can handle stress when the system starts up and stops down without cracking.

The thermal conductivity of 11.1 W/m·K makes sure that heat moves quickly while the structure stays strong. This makes the flanges perfect for use as heat exchangers in cleaning circuits, where temperature control is important for getting the best results from the process.

Comparing Inconel 686 Flanges with Other Alloy Flanges for Pulp and Paper Industry

If you want to choose the right material for a bleaching stage, you need to carefully look at its performance, lifetime costs, and operating dependability. Knowing how Inconel 686 stacks up against other materials helps buying teams make smart choices that improve both short-term performance and long-term economic benefits.

Performance Against Inconel 625 and 600 Series

Inconel 625 and 600 series metals are pretty good at resisting rust, but Inconel 686 works better in bleaching conditions with a lot of chloride. Inconel 686 is much more resistant to pitting and crevice corrosion, which are typical failure modes in bleaching uses, because it has more molybdenum. When put in mixed acid cleaning solutions, Inconel 686 has up to 50% lower rust rates than Inconel 625, according to tests done in the lab.

Inconel 686 flange has more tungsten than other metals, which makes it more resistant to stress corrosion cracking. This is very important in situations where tensile loads meet harsh chemical conditions. This means longer periods between service visits and fewer unexpected repair shutdowns.

Advantages Over Traditional Stainless Steel Solutions

Even though standard austenitic stainless steels like 316L and 317L are cheaper at first, they need to be replaced often in cleaning uses because they rust in certain places. Even though they cost more at first, Inconel 686 flanges have lower total costs of ownership because they last 3–5 times longer than stainless steel options.

Inconel 686 is easier to install and doesn't need to be heated after welding in many situations because it welds better than other metals. This trait is especially helpful during upkeep tasks, when fixes in the field need to be done quickly to keep production losses to a minimum.

Procurement Insights: Sourcing and Buying Inconel 686 Flanges for Bleaching Applications

To successfully buy Inconel 686 flanges, you need to work with makers who know both the technical needs of bleaching uses and the business realities of running an industrial business. TSM Technology's all-around method to quality assurance and supply chain management meets the most important needs of purchasing and engineering managers.

Quality Assurance and Certification Requirements

Every Inconel 686 flange that TSM Technology makes goes through strict testing procedures that go above and beyond what the industry requires. As part of our quality system, we use X-ray fluorescence spectrometry to check the chemical makeup and make sure it meets the requirements of UNS N06686. Testing of the mechanical properties shows that the tensile strength, yield strength, and stretch numbers meet or go beyond what is required by ASTM B564.

Ultrasonic testing according to ASTM E213 and radiography inspection according to ASME Section V guidelines are two types of non-destructive testing for the Inconel 686 flange. With these thorough tests, any flaws that might affect how well cleaning works in important situations are found. Material Test Certificates and third-party SGS reports are part of complete paperwork packages for the Inconel 686 flange. This makes it easy to track for quality checks and regulatory compliance.

Supply Chain Reliability and Lead Times

TSM Technology runs three factories that together have eight production lines and more than 100 machines. These factories can make 300 tons of goods every month. This large producing capacity makes sure that the product is always available, even for big projects or urgent repair needs. Delivery times vary from 10 to 25 days, based on the size and format of the order.

Our inventory management system makes sure that we always have the right amount of popular flange configurations in sizes ranging from 1/2" to 24". This cuts down on lead times for urgent uses. Custom fabrication lets you meet special needs while keeping the same high quality standards for regular goods.

Advantages and Challenges of Using Inconel 686 Flanges in Bleaching Stages

Implementing Inconel 686 flanges in cleaning processes has a lot of benefits, but it also comes with some issues that need to be dealt with through careful planning and execution. By knowing both the pros and cons, you can make the best use of merging into current systems.

Operational Benefits and Performance Improvements

Inconel 686 flanges are very resistant to rust, which means they need less upkeep and can be used for longer periods of time. When used in bleaching steps, these parts help pulp mills report longer maintenance times of 200 to 300 percent compared to regular materials. This is because the material can withstand general corrosion, pitting, and stress corrosion cracking, even in bleaching conditions that are very harsh.

Unplanned shutdowns can cost factories thousands of dollars an hour in missed productivity. More reliable systems mean fewer of these. Because Inconel 686 flanges work the same way in different process conditions, workers can find the best bleaching settings for better pulp quality without worrying about damaging the equipment.

In addition to making energy use more efficient, the Inconel 686 flange has better heat resistance and surface finish properties. When heat exchangers have these plates attached to them, the surfaces stay cleaner for longer, which keeps the best heat transfer coefficients even after long periods of use.

Implementation Considerations and Best Practices

Additionally, Inconel 686 has a lot of benefits, but it needs to be handled and installed in a certain way in order to work well. The work-hardening properties of the material mean that it needs to be machined correctly during installation and upkeep. TSM Technology offers full expert help to make sure that the right handling steps are taken.

Because they are stronger and expand and contract differently than carbon steel pipes, they need to be carefully analyzed for stress during the planning process. The right placement and design of the support for the expansion joint stops too many loads that could damage the flange or equipment nearby.

Visual inspection, dimensional checks, and non-destructive testing should all be part of regular inspection routines to keep an eye on performance and figure out when repair needs to be done. These proactive steps get the best return on investment while still meeting safety standards for operations.

Standards, Compliance, and Certification for Inconel 686 Flanges in Industrial Use

Inconel 686 flanges meet the strict needs of pulp and paper businesses around the world because they are made in line with international standards. Customers in a wide range of areas can trust TSM Technology to meet these standards for product quality and legal compliance.

International Standards and Specifications

The dimensions, pressure ratings, and face shapes of our Inconel 686 flanges meet the requirements of ASME B16.5, B16.47, and EN 1092 standards. These standards make sure that new systems will work with current pipe systems and give bleaching operations the pressure control they need. Types of joints that can be used range from 1/2" to 24" and include weld neck, slip-on, socket weld, blind, and lap joints.

The chemical make-up and mechanical properties of the Inconel 686 flange material must meet the conditions set out in ASTM B564 and ASME SB564 guidelines for forged parts. Meeting the requirements of EN 10095 and DIN 17750 makes it easier to trade with other countries and makes sure that goods can be sold in European markets with strict quality standards.

Certification Processes and Documentation

TSM Technology keeps its ISO 9001 approval and uses quality control systems that go above and beyond what the industry requires. Regular audits by a third party make sure that our manufacturing methods continue to meet world standards. Customers can be sure that the products they buy will work and be consistent because of this organized method to quality control.

Every shipment comes with full paperwork packages that include mill test certificates, chemical analysis reports, mechanical property test results, and records of non-destructive testing. These papers help customers with their quality control systems and give important uses in controlled industries the traceability they need.

Heat treatment certificates show that solution annealing was done at 1175°C, followed by rapid water cooling, which gave the metal its best corrosion protection. This controlled metallurgical process gets rid of any remaining stresses and makes the passive surface film as safe as possible.

Conclusion

Inconel 686 flanges are a big step forward in the technology of materials used for cleaning wood and paper. Their high resistance to corrosion, mechanical strength, and temperature stability make them perfect for the toughest parts of bleaching stage operations. They also save money in the long run by needing less upkeep and lasting longer. Because TSM Technology is dedicated to making high-quality products and getting them fully certified, these parts are able to meet the strict requirements of modern pulp processing facilities. This makes them an important choice for engineers who want to improve the performance and dependability of bleaching stages.

FAQ

1. What makes Inconel 686 flanges suitable for chlorine dioxide bleaching?

Inconel 686 flanges are very good at cleaning with chlorine dioxide because they contain a lot of molybdenum and tungsten, which makes them very resistant to oxidizing chlorinated chemicals. The material's inactive film stays solid even when chlorine dioxide is present in high concentrations, which stops pitting and crevice corrosion that happens with many other metals.

2. How do temperature fluctuations affect Inconel 686 performance in bleaching stages?

Inconel 686 has great dynamic qualities at temperatures between -200°C and 1000°C, which is usually the range of temperatures used for bleaching. The low thermal expansion rate and high strength retention at high temperatures of the material keep thermal stress to a minimum and stop changes in size that could weaken the seal or make it hard to line the system.

3. What inspection methods are recommended for Inconel 686 flanges in service?

Visual checks should be done on a regular basis to look for surface darkening, scaling, or pitting that could mean the item has been exposed to harsh circumstances. Ultrasonic testing can find flaws below the surface, and physical checks make sure that heat cycling hasn't permanently changed the shape of the material. In most cleaning situations, once a year checks are enough.

Contact TSM Technology for Premium Inconel 686 Flange Solutions

With our top-of-the-line Inconel 686 flange maker skills, TSM Technology is ready to help you optimize your bleaching step. We are the best partner for important bleaching uses because we have 14 years of experience making high-quality alloys, complete quality systems, and knowledge of the global supply chain. Get in touch with our expert team at info@tsmnialloy.com to talk about your needs and find out how our certified Inconel 686 flanges can improve the performance and stability of your facility while also lowering its long-term costs.
