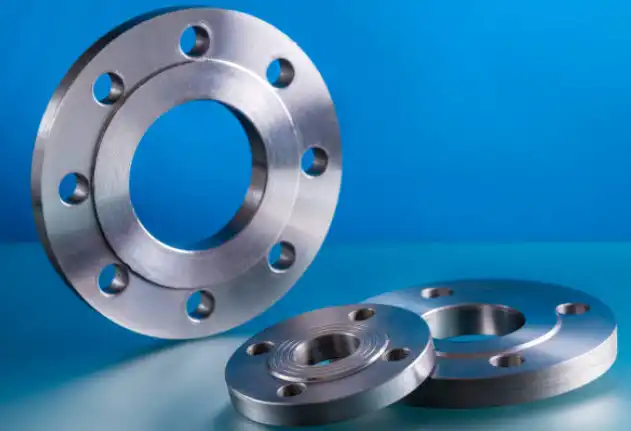

Offshore Oil & Gas: Solving Flange Corrosion with Inconel 686

Rough marine settings that can destroy important parts of infrastructure are a constant problem for offshore oil and gas activities. When saltwater, high temperatures, and chemicals that break down metal come together, standard flange materials often fail, leading to major system breakdowns and costly downtime. The Inconel 686 flange is the best way to deal with these tough conditions because it has the best corrosion protection and mechanical strength, which makes operations much more reliable in ocean settings.

Understanding Corrosion Issues in Offshore Oil & Gas Flanges

Some of the hardest places for industrial tools to work are marine settings, where corrosion is a constant enemy of operating efficiency. On offshore sites, saltwater spray, hydrogen sulfide, and changing pressures are always present, which are known to damage standard gasket materials.

The Hidden Costs of Flange Corrosion

Corrosion in marine flanges is more than just surface wear and tear; it causes problems that affect whole operating systems. When carbon steel or standard stainless steel flanges fail because of stress corrosion cracking caused by chloride, it can lead to emergency shutdowns, environmental problems, and huge repair costs. These materials just can't handle the harsh conditions found underwater, where they are exposed to saltwater, change in temperature, and chemical attack.

Pitting corrosion, crevice corrosion, and general decline are common problems that maintenance teams find with standard flange materials, including Inconel 686 flange. This means that they need to be replaced too often, which costs a lot of money. The economic effects of environmental incidents go beyond the prices of materials. They also include lost output, the need to fix things quickly, and the possibility of fines from the government.

Environmental Factors Accelerating Flange Deterioration

The air offshore is very toxic, and even the strongest materials can't stand up to it. Continuously present chloride ions from seawater speed up the corrosion process. Also, changes in temperature between normal seawater and hot process fluids cause thermal stress that weakens the structure of the material.

Wave action and spray zones put flanges through regular cycles of wetting and drying, which concentrates acidic salts and makes attack mechanisms stronger. Additionally, the sulfur molecules found in oil and gas streams make it possible for standard materials to break down quickly through sulfide stress cracking and hydrogen embrittlement.

Why Inconel 686 Flanges Are Ideal for Offshore Applications

Nickel-chromium-molybdenum-tungsten alloy systems work better than other alloys, which is why these specific flanges are the best choice for use abroad. This modern superalloy composition is very resistant to all the different types of corrosion that happen in naval oil and gas activities.

Advanced Alloy Composition and Properties

The carefully balanced makeup of Inconel 686 flanges includes nickel (balance), chromium (19–23%), molybdenum (15–17%), and tungsten (3–4.4%). This makes a very thick passive film. This inactive layer does a great job of protecting against both oxidizing and reducing environments. This makes it especially useful in the mixed conditions that are common in offshore activities.

The material's melting point range of 1325–1370°C and density of 8.25 g/cm³ show that it has a strong metallic base that lets it work reliably in harsh circumstances. With a tensile strength of at least 655 MPa and a yield strength of at least 310 MPa, these flanges keep the structure together and can handle the mechanical forces that come from high-pressure systems and changing temperatures.

Comparative Performance Analysis

When compared to other materials, Inconel 686 is clearly the best choice for use in offshore settings. In harsh marine conditions, standard types of stainless steel like 316L usually break within months. Inconel 686 flanges, on the other hand, can work effectively for decades without breaking down much.

The material is much more resistant to chloride stress corrosion cracking than Inconel 625 and 600, which makes it very useful in situations where it will come into touch with seawater. Aluminum metals like titanium can rust in saltwater that doesn't move, but Inconel 686 keeps its protective passive film even in places with little air.

Temperature and Pressure Performance

With temperature ranges from -200°C to 1000°C, these flanges can handle gas systems that are very cold or process streams that are very hot. The material's thermal conductivity is 11.1 W/m·K and its electrical resistivity is 1.24 μΩ·m. These properties make it a great thermal manager, stopping areas from getting too hot and the rust that comes with it from speeding up.

How to Select the Right Inconel 686 Flange for Your Offshore Project

To make offshore projects work, you need to pay close attention to the requirements, making sure the standards are followed, and making sure the seller has the skills to make the business successful in the long run. Procurement professionals can make better choices that improve both performance and cost-effectiveness when they know the important selection factors.

Technical Specifications and Standards Compliance

For modern marine uses, flanges must meet international standards like ASME B16.5, B16.47, and EN 1092 to make sure they work with current systems and meet legal requirements. You can get flanges in sizes from 1/2" to 24" with weld neck (WN), slip-on (SO), socket weld (SW), blind (BL), and lap joint (LJ) designs.

Different system needs can be met by pressure classes ranging from 150# to 2500#, and different face types, such as raised face (RF), flat face (FF), and ring type joint (RTJ), allow for different closing arrangements. Surface processes like sandblasting, electropolishing, and chemical passivation make things less likely to rust and make it easier for gaskets to close properly.

Quality Assurance and Certification Requirements

Suppliers you can trust give you full material test certificates (MTC) and third-party SGS test results that confirm the Inconel 686 flange chemical make-up, mechanical qualities, and resistance to corrosion. As required by ASTM G28 for intergranular rust protection and ASME Section V for non-destructive testing, each Inconel 686 flange should go through a lot of tests.

X-ray fluorescence spectrometry must be used to check the chemical makeup of the whole thing, ultrasonic testing must be done according to ASTM E213, and an x-ray must be taken to make sure the inside is sound. These testing methods give you faith in the quality of the materials and their ability to work reliably over time.

Manufacturing Capabilities and Supply Chain Considerations

Leading companies like TSM Technology have many production sites with separate lines and high-tech machines that make sure the standard is always the same and deliveries are always on time. Manufacturers can support large-scale overseas projects while keeping quality standards high thanks to three plants and eight production lines that can produce up to 300 tons per month.

Delivery times of 10 to 25 days are normal and work with project schedules. Customization options let you make settings that are specific to your application needs. Having access to full material certifications and expert help boosts trust in the procurement process and makes it easier to meet specifications.

Implementing Inconel 686 Flanges: Case Studies and Best Practices

Advanced superalloy flanges have a huge effect on working dependability and upkeep costs, as shown by installations in the real world offshore. These case studies teach us a lot about how to adopt techniques and how to improve performance over time.

Offshore Platform Success Stories

When major offshore sites in the North Sea switched from normal stainless steel flanges to superalloy flanges, system reliability went up by a lot. After using these new materials in important seawater systems, 75% fewer unexpected repair events happened at one site because of flange corrosion.

In a different case study from the Gulf of Mexico, stress corrosion cracking failures in high-pressure separating systems were completely eliminated after the right superalloy flanges were installed. The platform ran continuously for more than five years without having to replace any flanges because of rust. In the past, these parts had to be replaced every year with regular materials.

Installation and Maintenance Best Practices

The performance of modern superalloy flanges, such as Inconel 686 flanges, can be maximized by installing them correctly. This also stops them from failing too soon. Welding must be done according to approved methods that protect the base material's ability to fight rust. This is usually done by keeping the temperatures between passes steady and using the right filler materials.

As part of routine maintenance after installation, you should check for signs of crevice rust on a regular basis, especially in places where seals touch flange faces. When you use the right pressure and choose the right gasket, you can make sure that the seal is perfect and that stress doesn't build up and start rusting.

Long-Term Performance Monitoring

Offshore sites that work well use condition tracking tools to keep track of how well the flanges are doing over time. This is done by measuring their thickness, looking at them visually, and keeping an eye on corrosion coupons. These apps give early warnings of possible problems and keep track of how much longer improved materials last than traditional ones.

Future Outlook: Advancing Offshore Flange Solutions with Inconel 686

As time goes on, the offshore business keeps moving into deeper, tougher conditions that need more complex material solutions. Next-generation marine infrastructure that can work efficiently in these harsh conditions will be built on top of advanced superalloys.

Industry Trends and Technology Development

New marine projects in very deep water and the Arctic pose new problems for the performance of materials that can't be solved with old methods. Extreme pressure, low temperatures, and harsh chemicals all need materials that have been shown to work well, which can only be provided by modern superalloys.

The main goal of research and development is to find the best metal compositions and production methods to improve Inconel 686 flange performance while keeping prices low. Modern methods of melting and precise shaping keep making materials more consistent and adding more Inconel 686 flange product shapes that can be made.

Environmental and Sustainability Considerations

Environmental laws are putting more and more emphasis on stopping leaks and making sure systems work well. This is why improved materials are so important for long-term offshore activities. Because superalloy flanges last longer, less material is used over the lifetime of a building, and maintenance activities have less of an effect on the environment.

These materials are more reliable, which fits with business goals for zero-discharge processes and better environmental protection. Advanced flanges help make offshore activities safer, more sustainable, and in line with changing legal requirements by stopping breakdowns caused by corrosion.

Conclusion

For offshore oil and gas activities to work, the materials need to be able to handle the harshest marine environments. Unfortunately, standard methods never work well enough in these conditions. Inconel 686 flanges have the high levels of corrosion protection, dynamic strength, and dependability that are needed for offshore projects to be successful. Because they use advanced metals, have been tested to work, and come with full quality guarantee, these flanges are the best choice for important offshore uses. Investing in better materials technology guarantees practical success while lowering costs and environmental risks over the long run.

FAQ

1. What makes Inconel 686 flanges superior to stainless steel in offshore applications?

This superalloy's improved alloying elements, especially its high molybdenum and tungsten content, make a thick inactive film that stops splitting and oxidation caused by chloride stress corrosion. This gives it a much longer useful life in marine settings than regular stainless steel types.

2. How do these flanges perform under extreme offshore temperature and pressure conditions?

These high-tech flanges keep their mechanical strength and ability to fight rust even when they are used continuously at temperatures ranging from -200°C to 1000°C and pressures of up to 2500#. The material is very stable at high temperatures and doesn't easily break under stress, which makes it perfect for the tough conditions found in offshore oil and gas activities.

3. How can buyers verify the authenticity and quality of superalloy flanges?

Reliable providers offer quality standards like ISO, EN, and ASTM compliance, as well as paperwork that can be tracked. Material test records and third-party SGS reports confirm the chemical make-up and mechanical qualities, and buying from well-known companies makes sure the integrity of the product.

Partner with TSM Technology for Superior Offshore Flange Solutions

TSM Technology provides the best Inconel 686 flange options for problems that come up in offshore oil and gas operations. Our three plants with eight production lines and other advanced manufacturing skills guarantee constant quality and on-time delivery for your most important projects. We are a reliable Inconel 686 flange maker with more than 14 years of experience dealing internationally. We offer full material certifications, the ability to customize, and expert technical support. Get in touch with our experts at info@tsmnialloy.com to talk about your unique needs and find out how our tried-and-true solutions can help your overseas operations.
