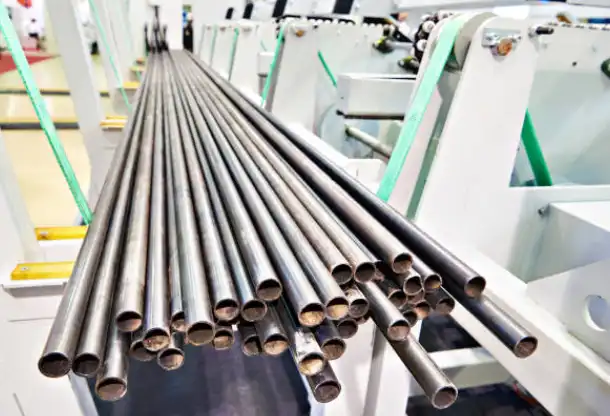

Recommended Heat Treatments for Incoloy 800 Tube

When it comes to optimising its performance in demanding industrial applications, the heat treatment of Incoloy 800 tubes is absolutely necessary. In most cases, the heat treatments that are indicated for Incoloy 800 pipe consist of solution annealing, which is then then followed by quick cooling. The corrosion resistance, high-temperature strength, and microstructural stability of the alloy are all improved to a greater degree by this treatment. When it comes to Incoloy 800 tube, solution annealing is often carried out at temperatures ranging from 1950°F to 2150°F (1066°C to 1177°C) for a predetermined amount of time that is determined by the thickness of the material. To keep the required microstructure intact, rapid cooling, which is typically accomplished through water quenching, is then performed. The application of these treatments guarantees that Incoloy 800 tubes will keep their great qualities even when exposed to harsh environments. As a result, these tubes are an excellent choice for heat exchangers, petrochemical equipment, and power generation systems.

Understanding Incoloy 800 Tube Properties

Composition and Microstructure

It is well known that the nickel-iron-chromium alloy known as Incoloy 800 tube performs exceptionally well in settings that are subjected to high temperatures. Nickel accounts for 30–35% of its composition, whereas chromium accounts for 19–23% and iron accounts for 39.5%. Additionally, titanium and aluminium are present in insignificant levels. This one-of-a-kind combination has the effect of producing an austenitic microstructure, which is one among the factors that contributes to the alloy's remarkable resistance to corrosion and its mechanical stability at high temperatures.

Mechanical Properties

It is particularly noteworthy that Incoloy 800 pipe possesses remarkable mechanical qualities when subjected to high temperatures. Even when subjected to temperatures as high as 871 degrees Celsius (or 1600 degrees Fahrenheit), it keeps its strength and ductility. When the material is at room temperature, the yield strength is normally somewhere around 30 ksi (207 MPa), whereas the tensile strength is somewhere around 75 ksi (517 MPa). Because of these characteristics, Incoloy 800 tubing is an excellent option for applications that require prolonged exposure to harsh conditions.

Corrosion Resistance

Incoloy 800 tube is distinguished by its remarkable resistance to a wide variety of corrosion types, which is one of its most notable characteristics. In oxidising and reducing atmospheres, it works exceptionally well, and it is resistant to scale and oxidation even when subjected to high temperatures. This alloy also demonstrates an excellent resistance to chloride stress corrosion cracking, which makes it appropriate for usage in chemical processing industries as well as maritime conditions.

Heat Treatment Techniques for Incoloy 800 Tube

Solution Annealing Process

One of the most important heat treatment processes for Incoloy 800 pipe is called solution annealing. During this treatment, the material is heated to a temperature that falls somewhere between 1950 and 2150 degrees Fahrenheit (1066 and 1177 degrees Celsius), then it is held at this temperature for a predetermined amount of time before being cooled down very quickly. Heat treatment can take anywhere from thirty minutes to several hours, depending on the thickness of the Incoloy 800 tubing. The time of the heat treatment is determined by their thickness. During this process, precipitates are dissolved, the microstructure is homogenised, and the alloy's resistance to corrosion and mechanical qualities are improved.

Rapid Cooling Techniques

It is vital to perform quick cooling after solution annealing in order to keep the microstructure of the Incoloy 800 tube in the desired state. The method that is most commonly used and offers the quickest rate of cooling is called water quenching. The use of air cooling or oil quenching, on the other hand, may be utilised in order to reduce the likelihood of deformation occurring in Incoloy 800 pipe that has complex geometries or thicker sections. Because it avoids the creation of undesired precipitates that could damage the characteristics of the alloy, the cooling rate is an extremely important and vital factor.

Stress Relieving Treatments

Stress relieving procedures may be required for Incoloy 800 tube in some circumstances, particularly after the fabrication or welding process has been completed. This method entails heating the material to a temperature that is lower than the solution annealing range, which is normally between 1300 and 1600 degrees Fahrenheit (704 and 871 degrees Celsius), holding the temperature for a predetermined amount of time, and then gradually cooling it down. The microstructure and characteristics of the alloy are not dramatically altered as a result of this treatment, which helps to reduce residual stresses.

Optimizing Heat Treatment Parameters

Temperature Control

In the process of heat treating Incoloy 800 tube, precise temperature control is absolutely necessary. To ensure that the needed temperature is maintained consistently across the entirety of the piece, the heating equipment must be capable of doing so. It is possible for grain development to occur if the temperature is exceeded above the prescribed range, while undershooting the temperature range may result in the incomplete dissolving of precipitates. In order to guarantee precise and consistent heating of Incoloy 800 pipe throughout the operation, contemporary heat treatment facilities make use of sophisticated temperature monitoring and control systems.

Time Management

Regarding Incoloy 800 tubing, the length of time that the heat treatment is applied is just as significant as the temperature. In order to ensure that precipitates are completely dissolved and that the microstructure is homogenised, the holding time at the solution annealing temperature must be sufficient. On the other hand, grain growth that is not desirable can be caused by prolonged exposure to high temperatures. The ideal amount of time is determined by the thickness of the Incoloy 800 tube, and it is normally computed in accordance with regulations established by the industry and the recommendations of the manufacturer.

Cooling Rate Optimization

The rate of cooling that occurs after solution annealing has a major impact on the qualities that are ultimately possessed by Incoloy 800 tubes. In order to preserve the homogenised structure, it is often recommended to achieve rapid cooling by methods such as water quenching. It is essential, however, to strike a balance between the pace of cooling and the possibility of distortion or cracking, particularly in the case of Incoloy 800 tubes with high diameters or complex geometries. There are situations in which controlled cooling rates or step cooling methods might be utilised in order to achieve the ideal balance between the qualities that are needed and the dimensional stability of the material.

Conclusion

In order to get the maximum potential level of performance from an Incoloy 800 tube in demanding industrial applications, it is important to subject the tube to the required heat treatment. If manufacturing companies exercise strict control over the solution annealing process, cooling procedures, and stress relief treatments, they are able to guarantee that Incoloy 800 pipe will continue to exhibit outstanding corrosion resistance, high-temperature strength, and microstructural stability. For example, they can guarantee that the pipe will continue to exhibit these characteristics. When it comes to manufacturing high-quality Incoloy 800 tubing that is capable of withstanding the rigorous demands of industries such as petrochemical processing, power generation, and aerospace, it is absolutely necessary to have a comprehensive understanding of these heat treatment parameters and to optimize them.

FAQ

What are the key benefits of heat treating Incoloy 800 tube?

Heat treatment enhances corrosion resistance, improves high-temperature strength, and ensures microstructural stability of Incoloy 800 pipe.

How does solution annealing affect Incoloy 800 tubing properties?

Solution annealing dissolves precipitates, homogenizes the microstructure, and optimizes the alloy's mechanical and corrosion-resistant properties.

What cooling method is best for Incoloy 800 tube after heat treatment?

Water quenching is typically preferred for rapid cooling, but air or oil cooling may be used for complex shapes to prevent distortion.
