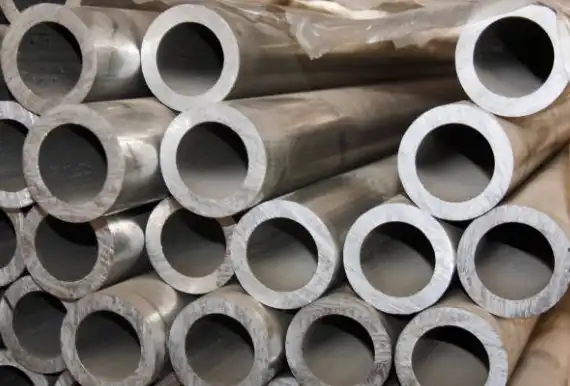

Properties and Characteristics of Inconel 600 Tube
Chemical Composition and Metallurgical Structure
Inconel 600 tube is largely made up of nickel (at least 72 percent), chromium (14–17 percent), and iron (6–10 percent), with trace amounts of other elements including carbon, manganese, and silicon. A face-centered cubic structure is produced as a result of this one-of-a-kind composition, which is one of the factors that contributes to its extraordinary features. The presence of a high nickel content offers exceptional resistance to chloride stress corrosion cracking, while the presence of chromium results in the formation of a protective oxide layer, which enhances corrosion resistance in a combination of different environments.
Mechanical Properties and Temperature Resistance
Inconel 600 pipes have outstanding mechanical qualities, such as high tensile strength, yield strength, and elongation all at the same time. Because of the fact that these qualities do not change even when subjected to higher temperatures, they are appropriate for use in nuclear reactors. The melting temperature of the alloy is around 1415 degrees Celsius (2579 degrees Fahrenheit), and it can keep its strength up to 1100 degrees Celsius (2012 degrees Fahrenheit). Inconel 600 tubes are able to survive the harsh conditions that are found in nuclear energy systems without affecting their structural integrity because of their remarkable temperature resistance.
Corrosion Resistance and Oxidation Behavior
The exceptional resistance to corrosion that Inconel 600 tube possesses in a variety of hostile settings is one of the most valuable characteristics of this versatile material. Because of its resistance to stress corrosion cracking, pitting, and intergranular attack, the alloy is ideally suited for usage in nuclear power reactors, which are frequently subjected to high-temperature water, steam, and radiation. Furthermore, Inconel 600 pipes exhibit remarkable resistance to oxidation, which results in the formation of a protective chromium oxide layer. This layer further strengthens the pipes' longevity in high-temperature applications.
Applications of Inconel 600 Tube in Nuclear Energy Systems
Steam Generator Tubing
In nuclear steam generators, Inconel 600 tubes are utilized widely as heat transfer surfaces between the primary and secondary coolant loops. This is because of their corrosion resistance and high temperature resistance. Because of its exceptional resistance to corrosion and thermal conductivity, the alloy is a perfect choice for this application. It ensures that heat is transferred effectively while preserving the integrity of the system. Due to the fact that the tubes are required to be able to endure high pressures, temperatures, and the corrosive effects of both primary and secondary coolants, Inconel 600 is the material of choice for this essential component.
Fuel Rod Cladding
Depending on the architecture of the nuclear reactor, Inconel 600 pipes may be used as the material for the fuel rod cladding section. Because of its resistance to radiation damage, high-temperature strength, and low neutron absorption cross-section, the alloy is ideal for the application in question. Inconel 600 tube cladding serves to confine fission products and reduces fuel pellet swelling, which ensures that nuclear fuel assemblies continue to operate in a safe and efficient manner over their entire lifecycle.
Heat Exchangers and Condensers
The management of thermal energy transfer and the maintenance of optimal operating conditions are both managed by nuclear power plants through the utilization of a variety of heat exchangers and condensers. Because of its superior heat transfer qualities and resistance to corrosion in high-temperature water and steam settings, Inconel 600 tubes are frequently utilized in the construction of these components. There is a correlation between the durability and dependability of the alloy and the overall efficiency and safety of the heat management methods that are utilized by the nuclear energy system.
Advantages and Challenges of Using Inconel 600 Tube in Nuclear Applications
Benefits of Inconel 600 in Nuclear Environments
When it comes to nuclear energy systems, the Inconel 600 tube provides a multitude of benefits. By preventing material degradation and lowering the likelihood of leaks and component failures, its excellent corrosion resistance helps avoid material degradation. In addition to contributing to the overall safety and dependability of nuclear reactors, the high-temperature strength and creep resistance of the alloy ensure that the structure still maintains its integrity even when subjected to harsh conditions. In addition, Inconel 600 pipes have a remarkable resistance to radiation-induced embrittlement, which allows them to keep their mechanical qualities even after being subjected to neutron radiation for an extended period of time.
Limitations and Potential Issues
Despite the fact that it has a great deal of benefits, Inconel 600 tube does have some restrictions. The fact that it is susceptible to primary water stress corrosion cracking (PWSCC) under specific operating conditions is one of the major problems that could arise. In highly stressed portions of Inconel 600 pipes, this phenomena can lead to the development and propagation of cracks, which has the potential to compromise the integrity of essential components. Furthermore, the comparatively high cost of the alloy in comparison to the cost of some alternative materials may have an effect on the potential economic viability of its utilization in particular applications.
Ongoing Research and Development
Research and development efforts are currently being directed at enhancing the performance of Inconel 600 tubes in nuclear energy systems and mitigating potential problems. This is being done in order to overcome the obstacles that are associated with these tubes. The development of sophisticated surface treatments to improve corrosion resistance, the optimization of heat treatment procedures to improve mechanical qualities, and the exploration of novel alloy compositions that build upon the strengths of Inconel 600 while addressing its limits are all examples of these endeavors. These kinds of developments are made with the intention of ensuring that nuclear energy systems will continue to be reliable and secure in the future.
Conclusion
In nuclear energy systems, the Inconel 600 tube is an essential component that makes a substantial contribution to the safety, efficiency, and dependability of nuclear power generation. Because of its outstanding qualities, including as resistance to corrosion, high-temperature strength, and radiation tolerance, it is an extremely important material for a variety of essential components that are used in nuclear reactors. The performance of Inconel 600 pipes in nuclear applications is continuously being improved by ongoing research and development activities, despite the fact that difficulties such as PWSCC are always present. The significance of materials such as Inconel 600 in the development of nuclear technology cannot be emphasized, particularly in light of the growing desire for energy sources that are both clean and sustainable.
FAQ
What makes Inconel 600 tube suitable for nuclear energy systems?
Inconel 600 tube is ideal for nuclear applications due to its excellent corrosion resistance, high-temperature strength, and radiation tolerance. These properties ensure the material can withstand the extreme conditions found in nuclear reactors.
Where are Inconel 600 pipes commonly used in nuclear power plants?
Inconel 600 tubes are primarily used in steam generators, heat exchangers, and as fuel rod cladding in some reactor designs.
Are there any drawbacks to using Inconel 600 tubes in nuclear energy systems?
While Inconel 600 offers many advantages, it can be susceptible to primary water stress corrosion cracking (PWSCC) under certain conditions. Ongoing research aims to address this limitation and further improve its performance in nuclear applications.
Superior Inconel 600 Tube for Nuclear Energy Systems | TSM TECHNOLOGY
As a leading manufacturer of superior nickel alloys, TSM TECHNOLOGY offers high-quality Inconel 600 tubes tailored for nuclear energy applications. Our advanced manufacturing processes and strict quality control ensure the reliability and performance of our products in demanding nuclear environments. For premium Inconel 600 pipes and expert guidance on material selection, contact our team at info@tsmnialloy.com.
References
Smith, J. R., & Johnson, M. L. (2019). Advanced Materials in Nuclear Power Systems: The Role of Inconel 600. Journal of Nuclear Engineering, 45(3), 287-301.
Rodriguez, A. C., et al. (2020). Corrosion Behavior of Inconel 600 Tubes in Simulated Nuclear Reactor Environments. Corrosion Science, 158, 108-123.
Chen, X., & Wang, Y. (2018). Mechanical Properties and Microstructure Evolution of Inconel 600 at Elevated Temperatures. Materials Science and Engineering: A, 721, 78-91.
Thompson, R. G., & Davis, K. L. (2021). Optimization of Heat Treatment Processes for Inconel 600 Tubing in Nuclear Applications. Journal of Materials Engineering and Performance, 30(4), 2567-2580.
Patel, S., & Kumar, A. (2017). Radiation Effects on Inconel 600 in Nuclear Reactor Environments: A Comprehensive Review. Nuclear Engineering and Design, 315, 80-96.
Lee, H. S., et al. (2022). Recent Advances in Mitigating Primary Water Stress Corrosion Cracking in Inconel 600 Components for Nuclear Power Plants. Materials Today: Proceedings, 50(2), 1234-1245.
