The Importance of Radiographic Testing for Incoloy 825 Tubes
Ensuring Material Integrity
Radiographic testing is essential for verifying the structural integrity of Incoloy 825 tubes. This nickel-iron-chromium alloy is renowned for its exceptional resistance to corrosion and high-temperature oxidation, making it a preferred choice in various demanding industries. By employing RT, manufacturers can detect internal defects that might compromise the material's performance, such as voids, inclusions, or cracks. These flaws, if left undetected, could lead to premature failure in critical applications where Incoloy 825 pipes are utilized, such as chemical processing plants, oil and gas facilities, or nuclear power generation.
Quality Assurance in Manufacturing
For manufacturers of Incoloy 825 tubing, radiographic testing serves as a crucial quality assurance tool. The RT process allows for the examination of welds, joints, and the overall tube structure without causing any damage to the material. This non-destructive nature of radiographic testing is particularly valuable for high-value components like Incoloy 825 pipes, as it enables thorough inspection without sacrificing the product. By incorporating RT into their quality control procedures, manufacturers can ensure that every Incoloy 825 tube meets the stringent standards required for its intended application.
Compliance with Industry Standards
Radiographic testing of Incoloy 825 tubes is often mandated by industry standards and regulatory requirements. Many sectors, such as aerospace, petrochemical, and nuclear power, have specific codes and standards that dictate the use of RT for critical components. By adhering to these standards through comprehensive radiographic testing, manufacturers and end-users of Incoloy 825 piping can demonstrate compliance and ensure the safety and reliability of their systems. This compliance is not only crucial for regulatory purposes but also instills confidence in the quality and performance of Incoloy 825 products.
Radiographic Testing Techniques for Incoloy 825 Tubes
X-ray Radiography
X-ray radiography is a widely used technique for the inspection of Incoloy 825 tubes. This method involves passing X-rays through the tube material and capturing the resulting image on a detector. The density variations within the Incoloy 825 pipe are reflected in the intensity of the X-rays passing through, allowing for the identification of internal defects. Advanced digital radiography systems have significantly enhanced the efficiency and accuracy of X-ray inspections for Incoloy 825 tubing, providing high-resolution images that can be easily analyzed and stored for future reference.
Gamma-ray Radiography
Gamma-ray radiography offers an alternative to X-ray testing for Incoloy 825 pipes, particularly in field applications or for thicker-walled tubes. This technique utilizes radioactive isotopes as the radiation source, producing gamma rays that penetrate the Incoloy 825 material. Gamma-ray radiography is often preferred for its portability and ability to inspect larger or more complex Incoloy 825 tube assemblies. However, it requires strict safety protocols due to the use of radioactive materials, making it more suitable for specialized inspection scenarios.
Computed Tomography (CT) Scanning
Computed Tomography (CT) scanning represents the cutting edge of radiographic testing for Incoloy 825 tubing. This advanced technique creates three-dimensional images of the tube structure by combining multiple X-ray projections taken from different angles. CT scanning provides unparalleled insight into the internal structure of Incoloy 825 pipes, allowing for precise measurement of wall thickness, detection of minute defects, and comprehensive analysis of complex geometries. While more time-consuming and costly than traditional radiography, CT scanning is invaluable for critical Incoloy 825 components where the highest level of inspection detail is required.
Interpreting Radiographic Test Results for Incoloy 825 Tubes
Identifying Common Defects
Interpreting radiographic test results for Incoloy 825 tubes requires expertise in recognizing various types of defects. Common issues that may be revealed through RT include porosity, which appears as dark spots on the radiograph, indicating gas pockets within the material. Inclusions, such as slag or foreign particles, may show up as lighter or darker areas depending on their density relative to the Incoloy 825 alloy. Cracks, which are particularly critical in pressure-bearing Incoloy 825 pipes, typically appear as fine, dark lines on the radiographic image. Proper interpretation of these indications is crucial for assessing the quality and fitness-for-service of Incoloy 825 tubing.
Evaluating Weld Quality
For welded Incoloy 825 pipes, radiographic testing plays a vital role in assessing weld integrity. RT can reveal weld defects such as lack of fusion, incomplete penetration, or excessive reinforcement. These issues are particularly important in Incoloy 825 tubes due to the alloy's specific welding characteristics and the critical nature of many applications where it is used. Skilled interpreters can analyze the radiographic images to ensure that welds meet the required quality standards, contributing to the overall reliability of Incoloy 825 piping systems.
Dimensional Analysis
Radiographic testing also allows for dimensional analysis of Incoloy 825 tubes, which is crucial for ensuring proper wall thickness and detecting any anomalies in the tube's geometry. By carefully examining the radiographic images, inspectors can measure wall thickness variations, identify areas of thinning, and detect any deformations in the Incoloy 825 pipe structure. This dimensional assessment is particularly valuable for monitoring the condition of Incoloy 825 tubing in service, especially in corrosive environments where material loss over time is a concern.
Conclusion
Radiographic Testing of Incoloy 825 tubes is an indispensable quality assurance method that ensures the reliability and performance of these high-performance alloy components. By providing detailed insights into the internal structure of Incoloy 825 pipes, RT enables manufacturers and end-users to maintain the highest standards of quality and safety. As technology continues to advance, radiographic testing techniques for Incoloy 825 tubing are becoming more sophisticated, offering improved detection capabilities and efficiency. Embracing these advancements in RT will be crucial for industries relying on Incoloy 825's exceptional properties to meet the challenges of corrosive and high-temperature environments.
FAQs
How often should Incoloy 825 tubes undergo radiographic testing?
The frequency of RT for Incoloy 825 pipes depends on the application and industry standards. Critical components may require testing during manufacturing and periodic in-service inspections.
Can radiographic testing detect all types of defects in Incoloy 825 tubing?
While RT is highly effective, it may not detect all defect types. Some planar defects oriented parallel to the radiation beam may be missed, necessitating complementary testing methods.
Is radiographic testing safe for inspectors working with Incoloy 825 tubes?
When performed by trained professionals following safety protocols, RT is safe. Proper shielding, exposure control, and monitoring are essential to protect personnel during the inspection of Incoloy 825 pipes.

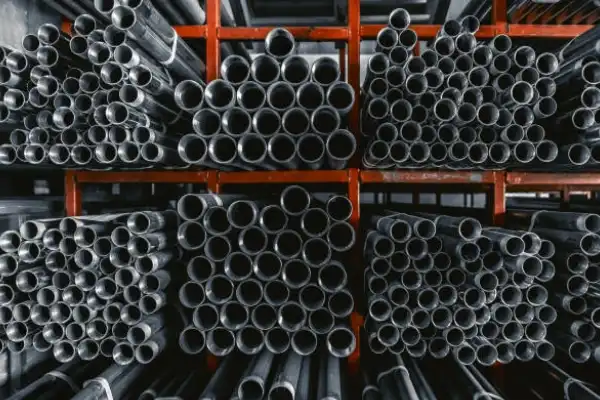

Premium Incoloy 825 Tubes for Sale | TSM TECHNOLOGY
