Surface Defect Detection in Inconel 625 Using PT

The Importance of Surface Defect Detection in Inconel 625 Components

Understanding Inconel 625 Properties

Inconel 625 is a nickel-chromium-based superalloy renowned for its exceptional resistance to corrosion and high-temperature strength. These properties make it an ideal material for fasteners and bolts used in extreme environments. However, the same characteristics that provide Inconel 625 with its superior performance also make it challenging to manufacture and inspect. Surface defects, even microscopic ones, can significantly impact the material's performance and longevity.

Critical Applications of Inconel 625 Fasteners

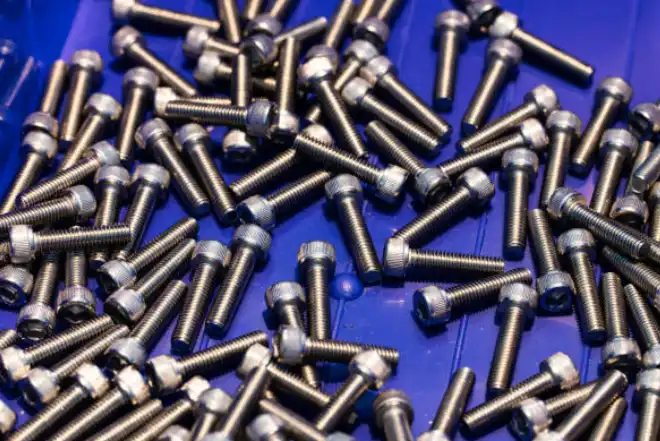

Inconel 625 fasteners and bolts find extensive use in industries where failure is not an option. In aerospace, these components secure critical parts in jet engines and exhaust systems. The chemical processing industry relies on Inconel 625 bolts for their resistance to aggressive chemicals and high temperatures. Offshore oil and gas platforms utilize these fasteners in seawater-exposed structures due to their excellent corrosion resistance. Given the critical nature of these applications, ensuring the integrity of each Inconel 625 component through rigorous surface defect detection is paramount.

Consequences of Undetected Surface Defects

Undetected surface defects in Inconel 625 fasteners can lead to catastrophic failures. In high-temperature applications, surface cracks can propagate rapidly, leading to sudden bolt failures. In corrosive environments, surface imperfections can serve as initiation points for accelerated corrosion, compromising the fastener's strength over time. For aerospace applications, the consequences of a failed Inconel 625 bolt could be life-threatening. Therefore, implementing robust surface defect detection methods like PT is not just a quality assurance measure but a critical safety protocol.

Penetrant Testing (PT) Methodology for Inconel 625

PT Process Steps for Inconel 625 Fasteners

The PT process for Inconel 625 fasteners and bolts involves several meticulous steps. First, the components are thoroughly cleaned to remove any contaminants that could mask defects. Next, a specially formulated penetrant is applied to the surface, often through dipping or spraying. The penetrant is allowed to dwell on the surface, typically for 10-30 minutes, depending on the specific requirements. During this time, the liquid penetrates any surface-breaking defects through capillary action. Excess penetrant is then carefully removed from the surface, ensuring not to disturb any penetrant that has seeped into defects. A developer is applied, which acts like a blotter, drawing the penetrant out of the defects and making them visible under ultraviolet light for fluorescent penetrants or in normal light for visible dye penetrants.

Adapting PT Techniques for Inconel 625's Unique Properties

Inconel 625's properties require specific adaptations to the PT process. The material's excellent corrosion resistance can sometimes make it challenging for penetrants to effectively wet the surface. To address this, specially formulated penetrants with lower surface tension may be used. Additionally, the high-temperature capabilities of Inconel 625 mean that these fasteners and bolts might have been exposed to extreme heat during manufacturing or in service. This exposure can create tight, oxide-filled surface cracks that are difficult to penetrate. In such cases, extended dwell times or multiple applications of penetrant might be necessary to ensure thorough inspection.

Interpreting PT Results on Inconel 625 Surfaces

Interpreting PT results on Inconel 625 surfaces requires skilled technicians familiar with the material's characteristics. The high reflectivity of Inconel 625 can sometimes make it challenging to discern subtle indications under UV light. Technicians must be trained to differentiate between true defects and false positives that may occur due to surface roughness or machining marks. The type of indication – whether it's a line, round spot, or diffused mark – can provide valuable information about the nature of the defect, such as cracks, porosity, or laps. For Inconel 625 fasteners and bolts, particular attention is paid to thread roots and under-head areas, where stress concentrations make defects especially critical.

Advancing Surface Defect Detection in Inconel 625

Complementary NDT Methods for Comprehensive Inspection

While PT is highly effective for surface defect detection in Inconel 625 fasteners and bolts, it's often used in conjunction with other non-destructive testing (NDT) methods for a more comprehensive inspection. Eddy current testing can be particularly useful for detecting near-surface defects in Inconel 625 components. Ultrasonic testing provides insight into internal defects that PT cannot detect. For critical applications, radiographic testing might be employed to create a complete picture of the fastener's integrity, both internally and externally. By combining these methods, manufacturers can ensure the highest level of quality control for Inconel 625 fasteners, meeting the stringent requirements of industries like aerospace and nuclear power generation.

Automated PT Systems for Inconel 625 Fastener Inspection

The development of automated PT systems has significantly enhanced the efficiency and reliability of surface defect detection in Inconel 625 fasteners. These systems use robotic arms to apply penetrant, remove excess, and apply developer with precise control. Advanced imaging systems capture and analyze the results, using artificial intelligence algorithms to identify and classify defects. This automation not only increases throughput but also improves consistency in inspection quality. For high-volume production of Inconel 625 bolts, automated PT systems can provide 100% inspection, ensuring that every single fastener meets the required quality standards.

Future Trends in Surface Defect Detection for Superalloys

The future of surface defect detection for Inconel 625 and other superalloys is moving towards more advanced, non-contact methods. Laser-based inspection techniques, such as laser-induced breakdown spectroscopy (LIBS), show promise for rapid, in-line detection of surface defects without the need for consumables like penetrants and developers. Another emerging technology is terahertz imaging, which can detect surface and near-surface defects in non-conductive coatings often applied to Inconel 625 fasteners. As these technologies mature, they may offer even more reliable and efficient means of ensuring the quality of Inconel 625 fasteners and bolts, further enhancing the safety and performance of critical applications relying on these high-performance components.

Conclusion

Surface defect detection in Inconel 625 using PT is a crucial quality assurance process that ensures the reliability and safety of fasteners and bolts in demanding applications. The unique properties of Inconel 625 necessitate specialized PT techniques and skilled interpretation of results. As technology advances, complementary NDT methods, automated systems, and emerging non-contact inspection technologies are enhancing our ability to detect even the most minute surface defects. This continuous improvement in inspection capabilities is essential for maintaining the highest standards of quality and safety in industries that rely on the exceptional performance of Inconel 625 fasteners and bolts.

FAQs

Why is surface defect detection important for Inconel 625 fasteners?

Surface defect detection is crucial for Inconel 625 fasteners to ensure their structural integrity and performance in critical applications where failure could have severe consequences.

What are the advantages of using PT for Inconel 625 surface defect detection?

PT is non-destructive, cost-effective, and highly sensitive to surface-breaking defects, making it ideal for inspecting Inconel 625 fasteners and bolts.

Can PT detect all types of defects in Inconel 625 components?

PT is excellent for detecting surface-breaking defects but cannot identify subsurface flaws. For comprehensive inspection, it's often used in combination with other NDT methods.

Expert Surface Defect Detection for Inconel 625 Fasteners | TSM TECHNOLOGY

At TSM TECHNOLOGY, we specialize in manufacturing high-quality Inconel 625 fasteners and bolts, employing advanced surface defect detection techniques to ensure unparalleled product integrity. Our state-of-the-art PT processes, combined with complementary NDT methods, guarantee that every fastener meets the most stringent quality standards. Trust our expertise to deliver superior alloy solutions for your critical applications. For more information about our Inconel 625 fasteners or custom solutions, contact us at info@tsmnialloy.com.
