Understanding Monel Tube Properties and Preparation
Composition and Characteristics of Monel Alloys

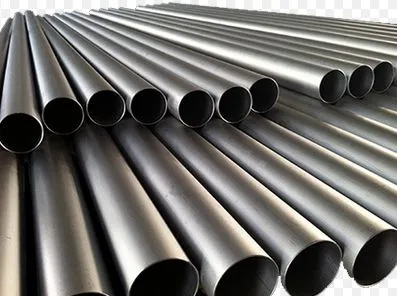

Monel tubes, primarily composed of nickel (63-67%) and copper (27-33%), offer exceptional resistance to corrosion and high strength. This unique alloy also contains small amounts of iron, manganese, and carbon, contributing to its remarkable properties. Monel's ability to withstand aggressive environments, including seawater and various acids, makes it a preferred choice in industries where material integrity is crucial.
The alloy's thermal conductivity, which is lower than that of steel, affects heat distribution during welding. This characteristic necessitates specific welding techniques to ensure proper fusion and prevent defects. Understanding these properties is essential for successful welding outcomes.
Surface Preparation Techniques
Proper surface preparation is critical for achieving high-quality welds in Monel tubes. Begin by thoroughly cleaning the welding area to remove any contaminants, oils, or oxides. Use a stainless steel wire brush or dedicated cleaning solutions designed for nickel alloys. Avoid using tools previously used on carbon steel to prevent contamination.
For optimal results, consider the following steps:
- Degrease the surface using acetone or similar solvents
- Mechanically clean the area with a stainless steel brush
- If necessary, use chemical cleaning methods specific to nickel alloys
- Ensure the surface is completely dry before welding
Joint Design Considerations
Selecting the appropriate joint design is crucial for Monel tube welding. The choice depends on factors such as tube diameter, wall thickness, and the specific application. Common joint designs for Monel tubes include:
- Butt joints: Ideal for tubes with thicker walls
- Socket welds: Suitable for smaller diameter tubes
- Fillet welds: Used for joining tubes to flat surfaces or in T-joint configurations
When designing joints, consider the following:
- Ensure proper fit-up to minimize gaps
- Use backing rings or purging for full penetration welds when necessary
- Account for thermal expansion during welding to prevent distortion
Welding Techniques and Parameters for Monel Tubes
Recommended Welding Processes
Several welding processes are suitable for Monel tubes, each with its advantages depending on the application. The most commonly recommended processes include:
- Gas Tungsten Arc Welding (GTAW/TIG): Offers precise control and high-quality welds, ideal for thin-walled tubes and critical applications.
- Gas Metal Arc Welding (GMAW/MIG): Suitable for thicker materials and provides higher deposition rates.
- Shielded Metal Arc Welding (SMAW): Versatile and suitable for field repairs, though less precise than GTAW.
GTAW is often preferred for its ability to produce clean, high-quality welds with minimal heat input, crucial for maintaining Monel's properties.
Filler Metal Selection and Usage
Choosing the correct filler metal is vital for achieving strong, corrosion-resistant welds in Monel tubes. The filler metal should closely match the composition of the base metal. Common filler metals for Monel 400 tubes include:
- ERNiCu-7 (for GTAW and GMAW processes)
- ENiCu-7 (for SMAW process)
When using filler metals:
- Ensure the filler metal is clean and free from contaminants
- Store filler metals in a dry environment to prevent moisture absorption
- Use the smallest diameter filler possible to minimize heat input
Welding Parameters and Heat Input Control
Controlling heat input is crucial when welding Monel tubes to prevent distortion and maintain material properties. Key parameters to consider include:
- Amperage: Use the lowest amperage that provides adequate penetration
- Voltage: Keep voltage low to minimize arc length and heat input
- Travel speed: Maintain a consistent, moderate speed to balance penetration and heat input
- Shielding gas: Use argon or helium-argon mixtures for optimal protection
Implement these strategies for heat control:
- Use pulsed welding techniques to reduce overall heat input
- Apply intermittent welding patterns when possible
- Utilize heat sinks or cooling methods between passes
Post-Welding Procedures and Quality Assurance
Cleaning and Inspection Methods
After welding Monel tubes, proper cleaning and inspection are essential to ensure weld quality and prevent corrosion. Follow these steps:
- Remove any slag or spatter using a stainless steel brush or dedicated Monel cleaning tool
- Clean the weld area with a suitable solvent to remove any residues
- Conduct visual inspections to check for surface defects, proper bead formation, and color
- Perform non-destructive testing (NDT) such as dye penetrant or radiographic testing as required by specifications
For critical applications, consider advanced inspection methods like ultrasonic testing to detect any internal defects.
Heat Treatment and Stress Relief
While Monel alloys generally do not require post-weld heat treatment, stress relief may be necessary for certain applications or when significant distortion has occurred. Consider the following:
- Stress relief temperatures typically range from 540°C to 590°C (1000°F to 1100°F)
- Hold times vary based on material thickness, usually 1 hour per inch of thickness
- Slow cooling in still air is recommended to prevent thermal shock
Consult material specifications and project requirements to determine if heat treatment is necessary for your specific application.
Documentation and Certification
Proper documentation is crucial for quality assurance and traceability. Maintain comprehensive records including:
- Welding Procedure Specifications (WPS) used
- Welder qualifications and certifications
- Material test reports for base metals and filler materials
- Inspection and testing reports
- Any deviations from standard procedures and their justifications
Ensure all documentation complies with relevant industry standards and client requirements. This documentation not only serves as proof of quality but also aids in troubleshooting and continuous improvement of welding processes.
Conclusion
Mastering the welding of Monel tubes requires a thorough understanding of the material's properties, meticulous preparation, and adherence to best practices. By following the guidelines outlined in this article, welders can achieve high-quality, durable welds that maintain the exceptional corrosion resistance and strength of Monel alloys. Remember that continuous learning and staying updated with the latest welding technologies and techniques are key to success in this specialized field. Whether you're working in marine environments, chemical processing plants, or oil and gas facilities, proper welding of Monel tubes is crucial for ensuring the longevity and reliability of critical systems.
FAQs
What makes Monel tubes challenging to weld?
Monel's unique composition requires specific welding techniques to maintain its corrosion resistance and strength. The alloy's thermal properties can lead to heat distribution issues during welding.
Can I use standard stainless steel welding procedures for Monel tubes?
No, Monel requires specialized procedures due to its distinct properties. Using stainless steel methods may compromise the weld quality and material integrity.
How important is shielding gas selection when welding Monel tubes?
Very important. Proper shielding gas, typically argon or helium-argon mixtures, is crucial to protect the weld pool and maintain Monel's corrosion resistance.
