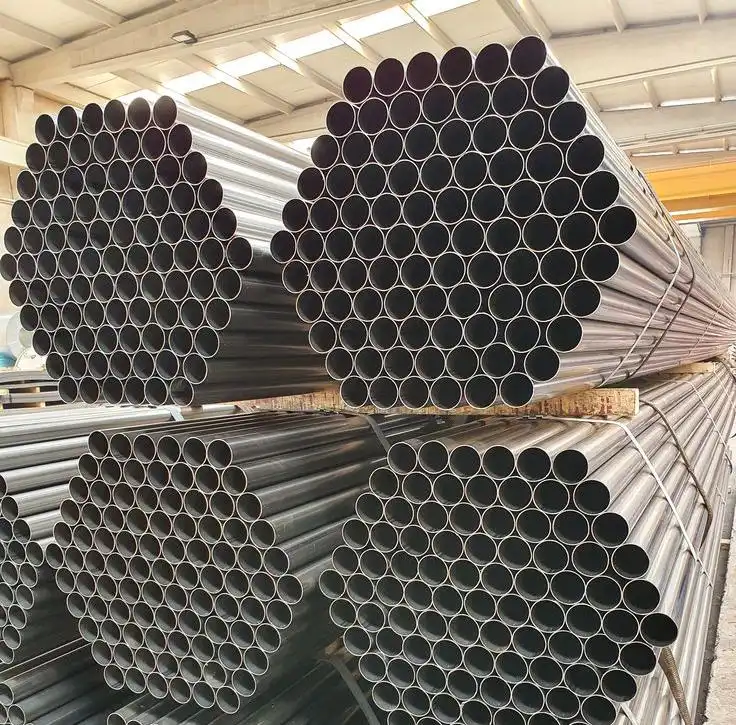

Understanding Monel 400 Tubing Inspection Standards
ASTM B163: Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
ASTM B163 is a crucial standard for Monel 400 tubing inspection. This specification covers seamless nickel and nickel alloy tubes for use in condensers and heat exchangers. It outlines requirements for chemical composition, mechanical properties, and dimensional tolerances.
Key aspects of ASTM B163 include:
- Chemical composition limits for elements like nickel, copper, iron, and carbon
- Tensile strength and yield strength requirements
- Elongation percentages for different tube sizes
- Flattening and flaring test procedures
Manufacturers must perform these tests to ensure compliance with ASTM B163, guaranteeing the tubing's quality and performance in critical applications.
ASME SB163: Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
ASME SB163 is closely related to ASTM B163 but is specifically tailored for pressure vessel applications. This standard is crucial for Monel 400 tubing used in high-pressure environments.
ASME SB163 includes additional requirements such as:
- Hydrostatic or nondestructive electric tests
- Stricter dimensional tolerances
- More comprehensive documentation and material traceability
Compliance with ASME SB163 ensures that Monel 400 tubing meets the stringent safety requirements for pressure vessel applications in industries like oil and gas, chemical processing, and power generation.
EN 10095: Heat Resisting Steels and Nickel Alloys
EN 10095 is a European standard that covers heat-resistant steels and nickel alloys, including Monel 400. This standard is particularly relevant for applications involving high-temperature environments.
Key inspection aspects of EN 10095 for Monel 400 tubing include:
- Specific requirements for chemical composition and mechanical properties at elevated temperatures
- Creep resistance testing procedures
- Oxidation resistance evaluations
Adherence to EN 10095 ensures that Monel 400 tubing maintains its structural integrity and corrosion resistance in extreme temperature conditions, making it suitable for applications in furnaces, heat exchangers, and other high-temperature industrial processes.
Critical Inspection Procedures for Monel 400 Tubing
Non-Destructive Testing (NDT) Methods
Non-destructive testing is essential for ensuring the integrity of Monel 400 tubing without compromising its structure. Common NDT methods include:
- Ultrasonic Testing (UT): Uses high-frequency sound waves to detect internal defects
- Eddy Current Testing (ECT): Identifies surface and near-surface flaws using electromagnetic fields
- Radiographic Testing (RT): Employs X-rays or gamma rays to reveal internal imperfections
These NDT techniques allow inspectors to identify potential issues like cracks, inclusions, or porosity without damaging the tubing. For instance, TSM Technology employs advanced ultrasonic testing following ASTM E213 standards, ensuring detection of even minute flaws with 0.02mm accuracy.
Dimensional and Visual Inspections
Precise dimensional checks and thorough visual examinations are critical for Monel 400 tubing quality control. Key aspects include:
- Outer Diameter (OD) and Wall Thickness (WT) measurements
- Straightness and ovality checks
- Surface finish evaluation
- End finishing inspection
TSM Technology's state-of-the-art manufacturing facilities, equipped with 85 CNC lathes, ensure exceptional tolerance control of ±0.01mm. This precision is crucial for applications requiring exact specifications, such as aerospace fuel systems or chemical processing equipment.
Mechanical and Corrosion Resistance Testing
To verify the mechanical properties and corrosion resistance of Monel 400 tubing, several tests are conducted:
- Tensile testing to determine strength and ductility
- Hardness testing for material consistency
- Flattening and flaring tests to assess formability
- Intergranular corrosion testing (ASTM G28) to evaluate resistance to localized corrosion
TSM Technology's rigorous testing protocols, including hydrostatic testing at 1.5 times the working pressure, ensure that their Monel 400 tubing meets and exceeds industry standards for performance in extreme environments.
Industry-Specific Inspection Requirements for Monel 400 Tubing
Aerospace and Defense Sector Standards
The aerospace industry demands the highest level of quality and reliability for Monel 400 tubing. Specific inspection requirements include:
- Compliance with AMS 4676 specifications
- Stringent cleanliness and surface finish requirements
- Enhanced traceability and documentation
- Specialized testing for cryogenic applications
TSM Technology's Monel 400 tubing meets these exacting standards, with options for thin-wall tubing (down to 0.3mm) for weight-sensitive applications in aircraft and UAVs. Their AS9100D certification underscores their commitment to aerospace quality standards.
Chemical Processing Industry Inspections
For chemical processing applications, Monel 400 tubing must undergo additional inspections to ensure its suitability for corrosive environments:
- Stress corrosion cracking resistance tests
- Pitting resistance evaluations
- Chemical composition verification using X-ray fluorescence (XRF)
- Surface roughness measurements for specialized finishes
TSM Technology's electropolished AcidGuard Series Monel 400 tubing is specifically designed and inspected for extreme pH environments, capable of handling sulfuric acid concentrations up to 70% at 80°C.
Marine Engineering Specific Tests
Marine applications of Monel 400 tubing require additional inspections to ensure long-term performance in seawater environments:
- Salt spray testing for corrosion resistance
- Biofouling resistance evaluations
- Galvanic corrosion compatibility checks
- Pressure testing for subsea applications
TSM Technology's OceanArmor Series Monel 400 tubing undergoes rigorous testing to meet DNV-GL certification standards for subsea manifolds, with a depth rating of 2,000m and surface roughness of Ra ≤0.8μm for superior biofouling resistance.
Conclusion
The key inspection standards for Monel 400 tubing, including ASTM B163, ASME SB163, and EN 10095, are crucial for ensuring the quality, reliability, and performance of this versatile alloy in demanding applications. From aerospace to chemical processing and marine engineering, each industry has specific requirements that necessitate rigorous testing and inspection procedures. By adhering to these standards and employing advanced inspection techniques, manufacturers like TSM Technology can provide Monel 400 tubing that meets the most stringent quality criteria, offering superior corrosion resistance, mechanical strength, and long-term durability in extreme environments.
FAQs
What is the chemical composition of Monel 400 tubing?
Monel 400 tubing typically consists of 67% nickel and 23% copper, with small amounts of iron, manganese, and other elements.
What are the key advantages of Monel 400 tubing?
Monel 400 tubing offers excellent corrosion resistance, high strength at elevated temperatures, and good ductility. It performs well in marine environments and various chemical processing applications.
What is the maximum operating temperature for Monel 400 tubing?
Monel 400 tubing can withstand temperatures up to 480°C (896°F) while maintaining its mechanical properties and corrosion resistance.
Experience the TSM Technology Advantage
At TSM Technology, we pride ourselves on delivering premium Monel 400 tubing that exceeds industry standards. With our state-of-the-art facilities, including 3 factories, 8 production lines, and over 100 machines, we ensure unparalleled quality and precision in every product. Our Monel 400 tubing, available in various dimensions (OD: 6.0-114 mm, WT: 0.5-15 mm, Length: Max 15000 mm), undergoes rigorous inspections and certifications. Experience the difference with TSM Technology – your trusted partner for superior alloy solutions. Contact us at info@tsmnialloy.com for more information or to request a free sample.
References
ASTM International. (2021). "ASTM B163 - Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes."
American Society of Mechanical Engineers. (2019). "ASME SB163 - Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes."
European Committee for Standardization. (2018). "EN 10095 - Heat Resisting Steels and Nickel Alloys."
ASM International. (2020). "Handbook of Materials for Medical Devices: Monel 400 Properties and Applications."
NACE International. (2019). "Corrosion Testing Methods for Nickel-Copper Alloys in Marine Environments."
Aerospace Materials Specification. (2021). "AMS 4676 - Nickel Alloy, Corrosion and Heat-Resistant, Bars, Forgings, and Rings."
