Why Investing in Inconel 686 Flanges Saves Money Long-Term?

Spending money on Inconel 686 flanges is a smart financial move that will save businesses money in the long run. This high-quality nickel-chromium-molybdenum-tungsten superalloy is very resistant to rust and stable at high temperatures. It also reduces the need for frequent repair, replacement costs, and downtime. Initial cost may seem higher than with other materials, but Inconel 686 flanges have a longer service life and lower lifecycle costs, which makes them a smart choice for industries like chemical processing, power generation, aerospace, and marine, where reliability directly affects profits.

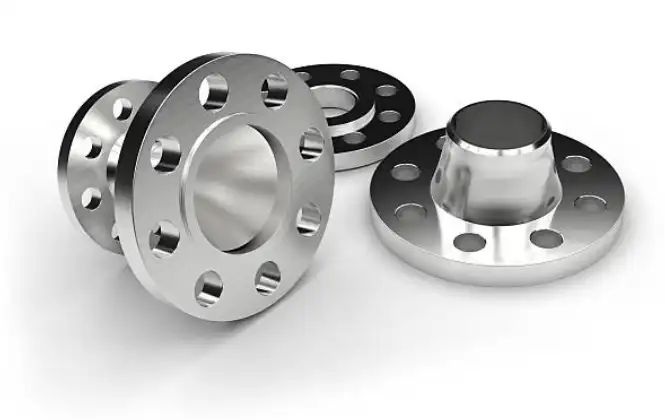

Understanding Inconel 686 Flanges and Their Unique Properties

The Inconel 686 flanges are the best thing that has ever been done in mechanical engineering. They are made to last in the harshest industrial settings. These carefully designed parts are made from UNS N06686, a superalloy that is made up of nickel as the main metal and chromium (19–23%), molybdenum (15–17%), and tungsten (3–4.4%) added in at key times. This one-of-a-kind mix of chemicals makes a thick passive film that protects against both oxidizing and reducing agents better than anything else.

The unique features of this superalloy come from the way its elements are carefully matched. The high molybdenum content makes it more resistant to pitting and crevice corrosion. The tungsten add-ons make it stronger at high temperatures and less likely to rust. The temperature range of these flanges is amazing: from -200°C to 1000°C, and their freezing point is between 1325°C and 1370°C.

Key success indicators show how great the Inconel 686 flange is at what it does:

• At least 655 MPa of tensile strength
• Strength of the yield over 310 MPa
• Properties of stretching that are at least 40%
• The density is 8.25 g/cm³.

Compared to other Inconel types, such as 600 and 625, the 686 version is better at resisting corrosion in harsh chemical conditions. Standard stainless steel flanges can break down quickly in acidic environments, but these nickel-based flanges keep their protective oxide layer even when they are exposed to sulfuric, hydrochloric, and phosphoric acids.

ASME B16.5, B16.47, and EN 1092 are among the manufacturing standards that are met. This makes sure that the products can be used in a wide range of industry settings around the world. In sizes from 1/2" to 24", you can choose from weld neck (WN), slip-on (SO), socket weld (SW), blind (BL), and lap joint (LJ) designs.

The Cost-Saving Advantages of Choosing Inconel 686 Flanges

Choosing these high-performance flanges has financial benefits that go far beyond the initial cost of purchase. Industrial sites that use these parts see a measurable drop in their total cost of ownership because they need less upkeep and service longer between visits.

Chemical processing companies that use these flanges say they last longer than 20 years in places where normal materials need to be replaced every 3 to 5 years. This material lasts a long time because it doesn't crack easily under stress and can keep its mechanical qualities even when it's exposed to acidic media all the time.

Because this superalloy is so easy to weld, there is no need for a post-weld heat treatment. This cuts down on installation time and the costs of labor. The versatility of Inconel 686 flanges makes it easier for manufacturing sites to keep track of their goods because they can be used in a number of different situations.

Unplanned maintenance shutdowns are one of the main reasons why manufacturing processes cost so much. When these flanges are used in high-temperature situations, power plants need fewer emergency fixes and can run for longer periods of time. The material is thermally stable, so it doesn't bend or change size like some other alloys do when they are heated and cooled many times.

Surface treatments like grinding, electropolishing, and chemical passivation make it even more resistant to rust while keeping the exact dimensions of the part. These processes make the surface smoother, which makes it harder for bacteria to stick to it in pharmaceutical and food processing settings. This leads to higher cleanliness standards and less cleaning being needed.

Making an Informed Procurement Decision for Inconel 686 Flanges

When buying these specialized parts strategically, you need to carefully look at the supplier's skills, the approval standards, and the delivery times. Because making superalloys is so complicated, companies that want to do it need to work with well-known companies that have strict quality control systems and thorough testing methods.

Leading companies like TSM Technology have more than one production facility that is specifically designed to work with superalloys. Over 100 specialized tools are used on their 8 production lines spread out over 3 plants to keep up a monthly supply capacity of 300 tons. This industrial scale makes sure that it is always available and keeps the accuracy needed for important tasks.

Quality verification includes many testing steps, such as X-ray fluorescence spectrometry for chemical makeup analysis, mechanical property testing, and examination without damaging the product on the Inconel 686 flange. Ultrasonic testing is done according to ASTM E213 standards, and x-ray checking is done according to ASME Section V standards. Material Test Certificates (MTC) and third-party SGS reports make it possible to fully track products and make sure they meet legal requirements.

Customizing the measurements, pressure levels, and surface finishes of a component lets you get the best performance for a certain application. Delivery times between 10 and 25 days are normal and work for most projects while still meeting quality standards. Custom manufacturing lets you meet the specific needs of your design without affecting the material's qualities or certification compliance.

Pressure class choices from 150# to 2500# give you options for high-pressure uses, and different face types (RF, FF, and RTJ) make sure they work with existing pipe systems. This flexibility means that you don't have to work with as many suppliers, which makes the buying process easier.

Case Studies: How Businesses Save Long-Term with Inconel 686 Flanges

Real-world implementation data shows that investing in high-quality superalloy parts pays off in several different industry areas.

In their sulfuric acid handling units, a large petrochemical plant on the Gulf Coast switched from normal stainless steel flanges to Inconel 686 parts. The work got rid of corrosion problems that kept happening and needed repair every three months before. Over the course of five years, the plant saw a drop in maintenance costs of more than 60% and a 99.2% uptime rate in key working areas.

Nuclear power plants that use Inconel 686 flange in equipment that processes radioactive garbage say that their service times are longer and their safety gaps are better. The material's resistance to degradation caused by radiation keeps the structure's stability over long periods of contact. Maintenance schedule changes from reactive to predictive models, which makes better use of workers and lowers the cost of emergency repairs.

When offshore platform owners use these flanges in their seawater piping systems, they reduce the number of times they have to repair parts and increase the reliability of the system. Because the material is so resistant to stress corrosion cracking caused by chloride, it doesn't break down early like most metals do in marine settings. Fleet owners say that repair vessel deployments and the costs that come with them have gone down by 40%.

Aerospace OEMs use the material's uniform qualities and high level of machinability to meet strict standards for surface finish and size tolerances. Predictable behavior during production cuts down on waste and boosts the efficiency of manufacturing. Custom flange solutions allow for new ways of designing while still meeting approval requirements for important flying uses.

Conclusion

Inconel 686 flanges are a smart investment that pays off in the long run by saving money on costs by lasting longer, needing less upkeep, and being more reliable in use. This nickel-chromium-molybdenum-tungsten superalloy doesn't need to be replaced often because it doesn't rust and stays stable at high temperatures. It also works well in tough industrial settings. When companies put the total cost of ownership ahead of the original cost of procurement, they regularly make more money when they use these high-quality parts in chemical processing, power generation, marine, and aerospace uses.

FAQ

1. What about Inconel 686 flanges makes them cheaper than other materials?

Compared to normal stainless steel choices, Inconel 686 flanges are better at resisting corrosion and last longer. Even though the initial cost is higher, the total cost of ownership over the lifetime of the component is cheaper because it needs less upkeep and doesn't break down before it's supposed to.

2. How long do these plates usually last in places where chemicals are harsh?

Service life depends on how it is used, but most systems in chemical production areas last between 15 and 25 years without any problems. This is three to five times better than regular materials used in the same situations.

3. What kinds of tests and approvals are available for these parts?

The standards for ASTM B564, ASME SB564, EN 10095, and DIN 17750 are all met by all flanges. Material Test Certificates (MTC) and possible SGS third-party testing results are part of each component. Ultrasonic examination and radiography inspection are examples of non-destructive tests that follow the rules set by ASME.

4. Are these pieces able to be changed to fit certain needs?

For specific size needs, pressure grades, and surface finishes, custom manufacturing is an option. Standard sizes run from 1/2" to 24", and pressure classes go from 150# to 2500#. You can get custom surface processes like grinding, electropolishing, and chemical passivation.

5. How long does it normally take to get these specialty parts?

Delivery times are usually between 10 and 25 days, but they depend on the size, quantity, and unique needs of the order. Depending on how complicated the manufacturing is and how it needs to be tested, it may take longer than expected.

Partner with TSM Technology for Premium Inconel 686 Flange Solutions

TSM Technology is the company you can trust to make Inconel 686 flanges. They offer high-quality superalloy parts that will help you run your business more efficiently and save you money over its lifetime. Our three plants and eight specialized production lines for advanced manufacturing give you peace of mind about quality and on-time delivery for your most important projects. We offer total solutions for your most difficult manufacturing needs, with full certification including MTC and SGS test results, the ability to customize, and expert technical support. Email our purchasing agents at info@tsmnialloy.com to talk about your unique needs and find out how our high-quality nickel-based flanges can improve your operations while lowering your long-term costs.
