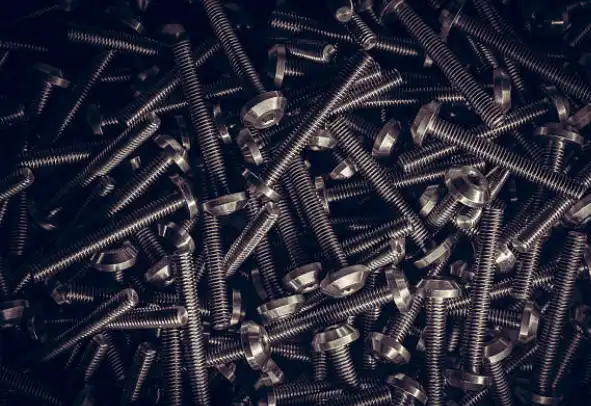

Composition and Microstructure of Inconel 718 Fasteners
Chemical Composition
Inconel 718 is a nickel-chromium-based superalloy with a carefully balanced composition that imparts exceptional mechanical and chemical properties. Its primary constituents include 50–55% nickel and 17-21% chromium, which provide corrosion resistance and high-temperature strength. Key alloying elements such as molybdenum (2.8-3.3%) enhance resistance to pitting and crevice corrosion, while niobium (4.75-5.5%) and titanium (0.65-1.15%) contribute to precipitation hardening and elevated temperature strength. Small amounts of aluminum (0.2-0.8%) and iron (≤19%) further improve oxidation resistance and microstructural stability. The precise composition ensures that Inconel 718 fasteners maintain their integrity in extreme environments, making them ideal for aerospace, chemical, and marine applications.
Microstructural Features
The microstructure of Inconel 718 fasteners plays a crucial role in their performance. The alloy typically exhibits a gamma (γ) face-centered cubic matrix strengthened by the gamma-prime (γ′, Ni₃(Al,Ti)) and gamma-double-prime (γ″, Ni₃Nb) precipitates. These precipitates obstruct dislocation motion, providing high strength and creep resistance at elevated temperatures. The δ-phase (Ni₃Nb) may form along grain boundaries, controlling grain size and enhancing toughness, while carbides (MC-type, usually NbC or TiC) contribute to wear resistance. This combination of phases creates a robust microstructure that balances hardness, toughness, and resistance to environmental degradation.
Heat Treatment Effects
Heat treatment significantly influences the mechanical properties and corrosion resistance of Inconel 718 fasteners. Solution annealing dissolves unwanted precipitates and homogenizes the microstructure, followed by rapid quenching to retain a supersaturated solid solution. Subsequent aging treatments at specific temperatures (typically two-step aging: ~720°C for 8 hours, furnace cooling to 620°C for 8 hours) promote the controlled precipitation of γ′ and γ″ phases, maximizing strength and hardness. Proper heat treatment also stabilizes the δ-phase and minimizes the formation of brittle intermetallics, ensuring optimal performance.
Mechanisms of Corrosion and Oxidation Resistance
Passive Film Formation
The exceptional corrosion resistance of Inconel 718 fasteners stems from their ability to form a thin, adherent passive film on their surface. This film, primarily composed of chromium oxide (Cr2O3), acts as a barrier against corrosive species. The high chromium content in the alloy ensures that this protective layer can quickly reform if damaged, providing continuous protection in aggressive environments.
Oxidation Behavior at Elevated Temperatures
At high temperatures, Inconel 718 fasteners exhibit remarkable oxidation resistance due to the formation of a complex, multi-layered oxide scale. The outer layer typically consists of Cr2O3, while the inner layers are enriched with oxides of nickel, iron, and other alloying elements. This layered structure provides effective protection against oxygen diffusion, limiting the rate of oxidation even at temperatures up to 980°C (1800°F).
Role of Alloying Elements
Various alloying elements in Inconel 718 fasteners contribute to their corrosion and oxidation resistance. Molybdenum enhances resistance to pitting and crevice corrosion, while niobium stabilizes the alloy against sensitization. Titanium and aluminum improve high-temperature strength and oxidation resistance by promoting the formation of protective oxide scales. The synergistic effect of these elements results in fasteners that can withstand a wide range of corrosive and oxidizing conditions.
Applications Leveraging Corrosion and Oxidation Resistance
Aerospace Industry
In the aerospace sector, Inconel 718 fasteners are extensively used in jet engine components, such as turbine blades, discs, and casings. Their ability to resist corrosion and oxidation at high temperatures makes them ideal for these demanding applications. The fasteners maintain their integrity in the presence of hot combustion gases and ensure the structural stability of critical engine parts throughout the aircraft's lifecycle.
Chemical Processing Equipment
Chemical processing plants benefit from the use of Inconel 718 bolts in various equipment, including reactors, heat exchangers, and piping systems. The fasteners' resistance to a wide range of corrosive chemicals, including acids and chlorides, ensures long-term reliability and reduces maintenance costs. Their ability to withstand high temperatures and pressures makes them suitable for use in processes involving aggressive chemicals and extreme operating conditions.
Marine and Offshore Applications
The exceptional corrosion resistance of Inconel 718 fasteners makes them invaluable in marine and offshore environments. They are used in shipbuilding, offshore platforms, and subsea equipment where exposure to seawater and marine atmospheres is constant. The fasteners' ability to resist chloride-induced stress corrosion cracking and pitting corrosion ensures the structural integrity of critical components in these harsh environments.
Conclusion
Inconel 718 fasteners stand out for their remarkable corrosion and oxidation resistance, making them indispensable in various high-performance applications. Their unique composition and microstructure enable the formation of protective oxide layers, safeguarding against degradation in extreme environments. From aerospace to chemical processing and marine applications, these fasteners prove their worth by maintaining structural integrity and reliability under challenging conditions. As industries continue to push the boundaries of material performance, Inconel 718 fasteners remain at the forefront, offering a compelling solution for environments where conventional materials fall short.
FAQs
What temperature range can Inconel 718 fasteners withstand?
Inconel 718 fasteners maintain their properties at temperatures ranging from cryogenic to about 650°C (1200°F) for continuous use, and up to 980°C (1800°F) for short-term exposure.
Are Inconel 718 fasteners magnetic?
Inconel 718 is generally non-magnetic in the annealed condition but may exhibit slight magnetism after cold working or aging treatments.
How do Inconel 718 fasteners compare to stainless steel in terms of corrosion resistance?
Inconel 718 fasteners typically offer superior corrosion resistance compared to most stainless steels, especially in more aggressive environments and at higher temperatures.
Get Your Corrosion-Resistant Inconel 718 Fasteners | TSM TECHNOLOGY
As a leading Inconel 718 fastener manufacturer and supplier, TSM Technology offers premium-quality, corrosion-resistant fasteners tailored to your specific needs. Our extensive range includes custom sizes from M2.5 to M32, with lengths from 1mm to 1990mm. With our stringent quality control, EN10204 3.1/3.2 certification, and efficient 10-25 day delivery, we ensure you receive top-notch products for your critical applications. Contact us at info@tsmnialloy.com to discuss your Inconel 718 fastener requirements and experience our exceptional service firsthand.
References
Special Metals Corporation. (2007). Inconel alloy 718. Publication Number SMC-045.
Donachie, M. J., & Donachie, S. J. (2002). Superalloys: A Technical Guide (2nd ed.). ASM International.
Slama, C., & Abdellaoui, M. (2000). Structural characterization of the aged Inconel 718. Journal of Alloys and Compounds, 306(1-2), 277-284.
Yin, H., Emi, T., & Shibata, H. (1999). Morphological instability of δ phase in Inconel 718 alloy. Acta Materialia, 47(5), 1523-1535.
Knorovsky, G. A., Cieslak, M. J., Headley, T. J., Romig, A. D., & Hammetter, W. F. (1989). INCONEL 718: A solidification diagram. Metallurgical Transactions A, 20(10), 2149-2158.
Nowotnik, A. (2016). Nickel-Based Superalloys. In Reference Module in Materials Science and Materials Engineering. Elsevier.
