How Inconel 718 Fasteners Enhance Reliability in Oil & Gas Equipment?

Oil and gas equipment requiring high mechanical strength, high temperature performance and corrosion resistance includes Inconel 718 fasteners. These fasteners are made from a precipitation hardenable nickel based alloy and can handle rigorous mechanical and thermal requirements when delivered in the proper heat treated state. Typical applications include drilling equipment, subsea components, downhole tools and high temperature processing systems. But picking the correct fastener takes more than just knowing the metal grade. Also, the operating temperature and pressure, the corrosive environments, the applied loads, and the material parameters that apply should be examined. Understanding these characteristics allows equipment makers and operators to evaluate whether Inconel 718 bolts and other fasteners are acceptable for their particular oil and gas applications.

Unparalleled Material Properties of Inconel 718 Fasteners

Exceptional Corrosion Resistance

Inconel 718 fasteners provide corrosion resistance in many industrial applications, and are thus a material alternative for several oil and gas applications. They are nickel and chromium based, and also include molybdenum and other alloying elements which help them withstand oxidation and some kind of chemical corrosion.

This characteristic is beneficial for equipment exposed to dampness, extreme temperatures and certain corrosive process conditions. However, Inconel 718 should not be considered immune to all chemical media. The corrosion performance is dependent on a variety of elements such as acid concentration, temperature, chloride concentration, exposure time and the presence of other pollutants. For example, under certain circumstances hydrochloric acid will corrode the alloy.

Engineers who are specifying Inconel 718 bolts for oil and gas equipment should not only look at the alloy designation but also at the actual process-fluid composition and operating circumstances. Corrosion tests and compatibility evaluations may be carried out, if required, to evaluate whether a material is appropriate for the intended service.

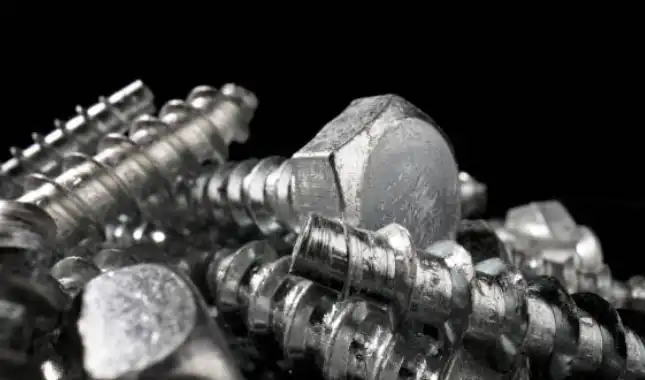

Inconel 718 Fasteners

High-Temperature Strength

One of the main advantages of Inconel 718 fasteners is its ability to retain usable mechanical strength at increased temperatures. The alloy is strengthened via precipitation hardening, creating strengthening phases in its nickel based matrix. This treatment is suited to its tensile strength, fatigue performance and resistance to creep.

These qualities are important for high temperature equipment used in oil and gas production and processing. Examples of use include selective connections in thermal process systems, high temperature equipment and other components under continuous heat and mechanical stresses.

But mechanical characteristics of Inconel 718 are dependent on heat treatment, product shape and section size. Manufacturer statistics do indicate high temperature performance; nevertheless, the temperature limit for a certain fastener must be determined from the corresponding material specification and engineering design criteria. Engineers should also consider sustained stress, heat cycling and the likelihood of stress relaxation when assessing if Inconel 718 bolts are acceptable for a particular connection.

Superior Creep and Fatigue Resistance

In the case of equipment subject to extended stress, high temperature or repetitive loading, creep and fatigue resistance are key factors in the selection of fasteners.

Creep is the slow deformation of a material under a continuous load, especially at high temperatures. Inconel 718 has good creep and stress-rupture qualities when properly processed and heat treated. These features contribute to the alloy’s performance in parts subject to prolonged mechanical and thermal stresses.

Oil and gas equipment also need fatigue resistance. During operation, pumps, compressors, drilling systems and other equipment might be subject to vibration, pressure variations and repetitive loads. Inconel 718 possesses properties of fatigue strength that are suited for several cyclic loading applications.

However, the long-term performance of a bolted connection also relies on thread geometry, surface quality, preload, installation torque, joint design and operating circumstances. The material selection alone does not ensure that clamping force is consistent over the service period of the equipment.

Applications of Inconel 718 Fasteners in Oil & Gas Equipment

Offshore Drilling Platforms

Offshore drilling rigs are equipped with devices that must function under severe mechanical conditions and in maritime environment. Inconel 718 fasteners might be considered for specified high-strength connections in drilling equipment, subsea assemblies and other components where mechanical performance and corrosion resistance is needed.

Their strength and fatigue qualities are important for the equipment subjected to vibration, changing loads and mechanical stress. The use of Inconel 718 bolts is feasible in connections where it is crucial to retain mechanical integrity under such circumstances, depending on the design and material specification.

However, offshore equipment might be subjected to saltwater, chloride exposure and other corrosive environments. Inconel 718 is not resistant to localised corrosion or to all forms of environmental deterioration. Then engineers should evaluate the real exposure circumstances like temperature, fluid composition and mechanical stress before selecting the alloy.

The selection of fasteners for subsea connections, riser assemblies and other safety essential components should also be in accordance with the necessary equipment specifications and certification standards.

Downhole Tools and Equipment

Downhole tools are subjected to combinations of high pressure, temperature, mechanical stress and possibly corrosive well fluids. These circumstances make the selection of materials very critical for packers, safety valves and other well-service equipment.

Inconel 718 fasteners might be used in specified downhole applications because of their high strength and mechanical durability under challenging working circumstances. Performance is governed by the heat treated state and the mechanical qualities needed by the equipment design.

Special care is required for sour gas service. Environments of hydrogen sulphide (H 2 S ) may introduce the possibility of sulphide stress cracking or other kinds of environmentally aided cracking. Thus it cannot be assumed that all Inconel 718 fasteners are immediately appropriate for sour service applications.

Buyers and engineers should check the appropriate criteria of NACE MR0175/ISO 15156, if applicable, before specifying Inconel 718 bolts for sour gas wells. Suitability may be affected by material condition, hardness, H2S partial pressure, temperature, pH and chloride content. Review the full product specification and qualification before you buy.

Processing and Refining Equipment

Heat exchangers, reactors, pressure vessels, pumps and other equipment used in oil and gas processing plants may be exposed to extreme temperatures and severe mechanical loads.

When the combination of strength, temperature capacity and environmental resistance matches the application requirements, Inconel 718 fasteners may be considered for specific connections in these systems. Their mechanical qualities are of particular importance in applications where fasteners are subjected to constant loads or repetitive heat and mechanical stresses.

Material compatibility remains a key problem. Processing and refining equipment might be exposed to a range of chemicals, process fluids and temperature extremes. Alloy resistance to one environment does not ensure its appropriateness to all refinery applications.

The selection of fasteners for pressure vessels and pipe connections must also take into consideration the appropriate design regulations, pressure requirements, joint layout, and bolting parameters. Where corrosion or stress corrosion cracking is a problem, the material qualification criteria should be assessed before specifying the fasteners in the working environment.

Benefits of Using Inconel 718 Fasteners in Oil & Gas Operations

Extended Equipment Lifespan

Properly designed Inconel 718 fasteners can sustain the life of equipment working under severe mechanical and thermal environments. High strength, fatigue performance, and resistance to oxidation assist to solve some of the material difficulties of industrial processes.

For situations where the necessary mechanical performance or environmental resistance cannot be achieved with traditional fastener materials, Inconel 718 may be a better choice. This is especially important for equipment that is difficult to reach, or needs a lot of preparation for maintenance and component replacement.

For example, changing fasteners in subsea assemblies or remote drilling equipment might require considerable labour, equipment and operating expenditures. Selecting the right material at design stage may help limit the danger of premature deterioration of fasteners.

But actual service life is dependent on the whole working environment, quality of installation, maintenance methods, and connection design. The choice of material should be made according to the predicted conditions of service rather than on assumptions on the endurance of the alloy.

Enhanced Safety and Environmental Protection

Fasteners are critical to the mechanical integrity of oil and gas equipment. This failure may impact pressure-containing connections, structural assemblies, and other vital parts.

Inconel 718 fasteners has excellent mechanical strength and good performance at increased temperatures and under cyclic stress. If suitably designed and installed they may assist in maintaining the integrity of connections subject to demanding service circumstances.

This is critical in drilling systems, subsea equipment and processing facilities where failure of the connection may lead to equipment damage, leakage or unscheduled shutdowns.

However, the usage of Inconel 718 alone cannot ensure operational safety, or avoid environmental issues. Reliable equipment also needs suitable engineering design, material certification, regulated installation, inspection and maintenance. For sour-service applications, the relevant material requirements should be validated rather than assumed.

Improved Operational Efficiency

Material selection may affect maintenance needs, availability of equipment and total cost of oil and gas operations. If the mechanical and environmental features of Inconel 718 fasteners meet the application requirements, they may improve the efficiency of operation.

Due to their fatigue strength and high temperature performance they are applicable to specified components under repeated loading and thermal stress. Using a properly specified fastener may help decrease the chance of early material related failures, and the associated maintenance labour.

This is especially helpful at offshore sites and distant facilities where maintenance tasks need specialised staff, equipment and logistical planning.

Standardising the appropriate fastener standards may also make it easier for equipment makers and procurement teams to identify materials and ensure quality control. various working circumstances could still dictate various material grades, heat treatments and fastener designs, however. Therefore a technical evaluation of the application should precede any standardisation decision.

Conclusion

Inconel 718 fasteners provide a combination of high mechanical strength, increased temperature performance and corrosion resistance of relevance to specific oil and gas applications. The material qualities may be employed in drilling equipment, downhole tools, offshore assembly and processing systems when they fulfil the requirements of the operating environment.

The alloy grade alone is insufficient for successful material selection. The performance of a fastener is affected by heat treatment, hardness, temperature, pressure, corrosive media, circumstances of loading and relevant industry standards. Special consideration should be given to sour service applications and should be assessed against applicable NACE MR0175/ISO 15156 criteria.

For equipment makers and oil and gas procurement teams, validating these technical information before placing an order helps guarantee the fasteners chosen will match the criteria of the intended application.

FAQs

What makes Inconel 718 fasteners suitable for oil and gas applications?

Inconel 718 fasteners provide excellent tensile strength, fatigue resistance, creep performance and useful corrosion resistance. These features are advantageous in specific applications with high temperature, mechanical stress and rigorous operating conditions. However, their appropriateness relies on the real climate, the heat treatment and the material specification needed.

Can Inconel 718 bolts withstand sour gas environments?

Some sour-service applications may use Inconel 718 bolts, but cannot be qualified by alloy grade alone. The material condition, hardness, environmental limitations and related requirements shall be confirmed by the buyer according to NACE MR0175/ISO 15156. The parameters to be examined include H₂S partial pressure, temperature, pH and chloride concentration.

How do Inconel 718 fasteners contribute to equipment longevity?

They have excellent strength, fatigue performance and oxidation resistance, which may assist to prevent material-related deterioration in properly chosen applications. This may lessen the risk of early replacement of fasteners and related maintenance work. Also, the actual service life is influenced by connection design, installation, operating circumstances and inspection standards.
