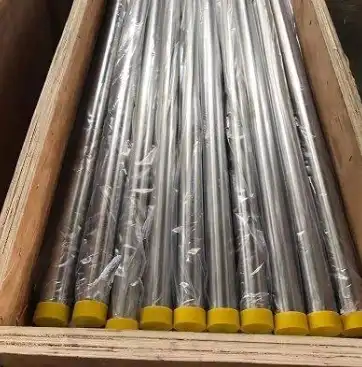

Understanding Monel 400 Tubing Tolerances
Material Properties and Their Impact on Tolerances
Monel 400, a solid-solution nickel-copper alloy, is renowned for its outstanding corrosion resistance, mechanical strength, and durability under harsh conditions. However, these same properties influence how dimensional tolerances are maintained during fabrication. The alloy's tendency to work-harden quickly and its moderate thermal expansion coefficient require precise control during forming, machining, and heat treatment processes. Engineers must carefully account for these factors to ensure that tubing maintains dimensional accuracy and stability, particularly in high-temperature or high-pressure service environments.
Industry Standards for Monel 400 Tubing
Tolerances for Monel 400 tubing are primarily defined by international standards such as ASTM B163 and ASME SB163, which outline acceptable dimensional variations and inspection requirements. These standards establish limits for parameters including outer diameter, wall thickness, and straightness to ensure consistent product quality. For seamless tubing, typical outer diameter tolerances range from ±0.005 inches for smaller diameters to ±0.015 inches for larger sizes. Wall thickness variations are generally permitted within ±10%, ensuring that the tubing meets the mechanical and structural integrity demands of critical industrial applications.
Factors Affecting Tolerance Selection
When dimensioning tolerances for custom Monel 400 tubing, consider the following factors:
- Operating pressure and temperature
- Corrosive environment exposure
- Mechanical stress requirements
- Fitting and assembly specifications
- Regulatory compliance needs
These factors will help determine whether standard tolerances are sufficient or if tighter specifications are necessary for your application.
Precision Measurement Techniques for Monel 400 Tubing
Advanced Measurement Tools and Technologies
Achieving accurate dimensions for Monel 400 tubing requires the use of precision measurement tools. Modern manufacturers employ a range of technologies, including:
- Laser micrometers for non-contact OD measurement
- Ultrasonic wall thickness gauges for accurate WT verification
- Coordinate measuring machines (CMMs) for complex geometry inspection
- Optical comparators for profile and straightness checks
These tools enable manufacturers to maintain tight tolerances and ensure consistency across production runs.
Quality Control Processes
Implementing robust quality control processes is crucial for maintaining dimensional accuracy in Monel 400 tubing production. Key elements of an effective QC program include:
- Regular calibration of measurement equipment
- Statistical process control (SPC) to monitor production trends
- 100% inspection for critical dimensions
- Material certifications and traceability documentation
By adhering to strict quality control measures, manufacturers can consistently produce Monel 400 tubing that meets or exceeds specified tolerances.
Addressing Challenges in Dimensional Control
Maintaining tight tolerances for Monel 400 tubing can present challenges, particularly for custom applications with unique requirements. Common issues include:
- Ovality in larger diameter tubing
- Wall thickness variations in long tube lengths
- Straightness deviations in heat-treated tubing
Experienced manufacturers employ specialized techniques, such as controlled drawing processes and precision straightening equipment, to overcome these challenges and achieve the required dimensional accuracy.
Optimizing Tolerances for Specific Applications
Aerospace and Defense Applications
In aerospace and defense industries, Monel 400 tubing is often used in fuel systems and hydraulic lines. For these critical applications, tighter tolerances are typically required to ensure proper fit and function. Key considerations include:
- Specifying tighter OD tolerances (±0.002 inches) for precise fitting connections
- Maintaining strict wall thickness control to ensure consistent pressure ratings
- Implementing enhanced straightness requirements for long runs in aircraft systems
Working closely with aerospace-certified manufacturers ensures compliance with industry standards such as AS9100 and AMS specifications.
Chemical Processing Equipment
Monel 400 tubing is widely used in chemical processing equipment due to its excellent corrosion resistance. When dimensioning tolerances for these applications, consider:
- Specifying tighter wall thickness tolerances to account for potential corrosion allowances
- Ensuring consistent OD for proper sealing in high-pressure systems
- Addressing surface finish requirements for optimal flow characteristics
Collaboration with experienced fabricators can help optimize tolerances for specific chemical processing environments.
Marine and Offshore Applications
In marine and offshore settings, Monel 400 tubing must withstand harsh saltwater environments. Tolerance considerations for these applications include:
- Specifying appropriate wall thickness tolerances to account for long-term corrosion resistance
- Ensuring tight OD control for proper fitting in subsea equipment
- Addressing straightness and ovality requirements for long runs in offshore platforms
Working with manufacturers experienced in marine-grade materials ensures optimal performance in challenging oceanic conditions.
Conclusion
Dimensioning tolerances for Monel 400 tubing in custom applications requires a comprehensive approach that considers material properties, industry standards, and specific application requirements. By understanding the factors that influence tolerance selection and employing precision measurement techniques, manufacturers can achieve the dimensional accuracy necessary for optimal performance. Collaborating with experienced Monel 400 tubing suppliers and leveraging their expertise in quality control and specialized production processes is key to success in demanding industries such as aerospace, chemical processing, and marine engineering.
FAQs
What are the typical tolerance ranges for Monel 400 tubing?
Standard tolerances for Monel 400 tubing typically range from ±0.005 to ±0.015 inches for outer diameter and ±10% for wall thickness, as per ASTM B163 and ASME SB163 standards. However, tighter tolerances can be achieved for custom applications.
How does Monel 400's corrosion resistance affect dimensional stability?
Monel 400's excellent corrosion resistance helps maintain dimensional stability over time, even in harsh environments. This property makes it ideal for long-term use in marine and chemical processing applications where dimensional integrity is crucial.
