Welding Techniques for Alloy 400 Pipe
TIG Welding: Precision and Quality
For making Alloy 400 pipes, TIG welding is the best way because it is very precise and makes great welds. In this method, the arc is made with a tungsten electrode that doesn't need to be replaced, and a different filler metal is added to the weld pool. The inert gas cover, which is usually argon, keeps the weld clean from outside contaminants.
Some of the best reasons to TIG weld Alloy 400 pipes are:
- Very good control over the weld bead
- Not much spray and clean welds
- The ability to join pipes with thin walls without distorting them
It's important to keep the heat input at the right level when TIG welding Alloy 400 to avoid hot cracking. Welders at TSM Technology make sure that the right factors are used so that the welds meet or go beyond ASME SB165 standards.
MIG Welding: Efficiency and Versatility
When making Alloy 400 pipes, MIG welding is the best way to get the job done quickly and well. For this method, a wire electrode that is used up is run through the welding gun, which also provides the shielding gas. MIG welding is great for making bigger things and pipes with thicker walls.
Some of the benefits of MIG welding Alloy 400 pipes are:
- Higher rates of formation than TIG welding
- Great for welding that isn't in the right place
- Less time spent welding means more work gets done.
To make sure the weld's corrosion protection is the same as the base Alloy 400 material, our welders carefully choose filler metals that work well with it, like ERNiCu-7.
Specialized Welding Considerations
To make Alloy 400 pipes, you need to pay close attention to the details and know a lot about them. Some important things to think about are:
- Cleaning before welding to get rid of surface dirt and grime
- Proper preparation of the joint to ensure full entry
- Post-weld heat treatment to reduce stresses and make features better
At TSM Technology, our welding processes are carefully designed to take these things into account. This makes sure that the welds we make are always of the highest quality and meet strict industry standards.
Bending Techniques for Alloy 400 Pipe
Cold Bending: Preserving Material Properties
Many shapes can be made in Alloy 400 pipes without using heat. This is called "cold bending." This method works best for pipes that have smaller sizes and thinner walls.
Some benefits of cold-bending Alloy 400 pipes are:
- Not many changes were made to the material's substructure.
- Keeping the qualities that make corrosion resistant
- Reduced risk of oxidation or scaling

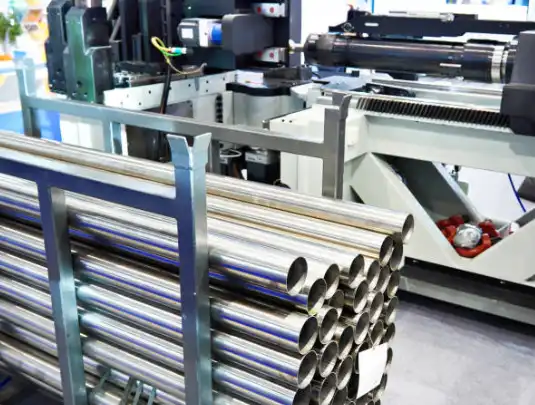

Our cutting-edge CNC bending machines give us exact control over the bend radius, which makes sure that the quality of each production run is the same. We can bend pipes with radii that are as small as 1.5 times their width and still keep the structure strong.
Hot Bending: Tackling Complex Shapes
When you need to bend Alloy 400 pipes with bigger diameters or tighter bend radiuses, hot bending is the best way to do it. For this method, the pipe must be heated to between 870°C and 980°C before it can be bent.
Some of the best things about hot bending are:
- The ability to make bends and forms that are more complicated
- Less springback action
- Lower amounts of force needed to bend
We carefully control our hot bending process to keep it from getting too hot, which could cause grains to grow and make the metal less resistant to rust. A post-bend heat treatment is often used to get the alloy back to its best qualities.
Specialized Bending Techniques
We use special methods for Alloy 400 pipes in addition to the usual hot and cold bending:
- Using induction bends to heat precisely in one place
- Stretch bending to keep the wall thickness the same
- Roll bending to make bends with a large radius
With these cutting-edge techniques, we can meet even the strictest requirements for making Alloy 400 pipes. We make sure that every part we sell fits our clients' needs perfectly.
Quality Assurance in Alloy 400 Pipe Fabrication
Non-Destructive Testing (NDT) Methods
Making sure the integrity of manufactured Alloy 400 pipes is very important for how well they work in tough conditions. At TSM Technology, we use a full range of NDT techniques to check the quality of our bent and welded pipes:
- Radiographic tests to find problems inside
- Ultrasound tests to check the integrity of a weld
- Dye penetrant tests to find flaws on the surface
Our NDT methods follow the rules set by ASTM E165 and the ASME Boiler and Pressure Vessel Code. This gives our customers faith in the dependability of our Alloy 400 pipe products.
Mechanical and Corrosion Testing
In addition to NDT, we put our manufactured Alloy 400 pipes through strict mechanical and corrosion tests:
- Testing for tensile strength according to ASTM E8 rules
- Testing for ductility after construction by bending
- Intergranular corrosion testing as per ASTM G28
These tests make sure that the way we make things doesn't change the great mechanical qualities and resistance to corrosion that Alloy 400 is known for.
Documentation and Traceability
For quality assurance and legal compliance, full documentation is a must. Our method for quality control gives us:
- Reports on the material tests (MTRs) of both raw materials and final goods
- Specifications for the welding process (WPS) and records of the qualification process (PQR)
- Reports on dimensional inspections and proof of compliance
Our blockchain-based traceability system lets customers see the full history of their Alloy 400 pipe products, from the raw materials used to the final inspection. This makes the manufacturing process clear and trustworthy.
Conclusion
To make Alloy 400 pipes, you need to use a complex mix of welding and bending methods and be very careful about quality control. We at TSM Technology use our knowledge of advanced cold and hot bending techniques, as well as TIG and MIG welding, to make Alloy 400 pipes that meet the strictest industry standards. Our dedication to quality is clear in the thorough testing and recording processes we use to make sure that every pipe we make keeps the great corrosion resistance and mechanical properties that make Alloy 400 so useful in important situations. When projects need precisely designed Alloy 400 pipes, you can count on TSM Technology to provide solutions that go above and beyond.
FAQ
What is the maximum diameter of Alloy 400 pipe that can be fabricated?
We can make Alloy 400 pipes with outside sizes of up to 324 mm at TSM Technology. These pipes meet ASTM B165 and ASME SB165 standards.
How does TSM ensure the quality of welded joints in Alloy 400 pipes?
We use strict NDT methods, like x-rays and ultrasounds, and follow strict welding processes to make sure the joints are strong and meet industry standards.
Can Alloy 400 pipes be bent to custom specifications?
Yes, our advanced bending methods let us change bend radii and make complicated shapes to fit the needs of each project.
Why Choose TSM TECHNOLOGY for Your Alloy 400 Pipe Needs?
TSM TECHNOLOGY stands as a premier manufacturer and supplier of Alloy 400 pipes, offering unparalleled expertise in fabrication techniques. With our state-of-the-art facilities, including 3 factories, 8 production lines, and over 100 machines, we ensure precision manufacturing of Alloy 400 pipes to ASTM B165, ASME SB165, and EN 10095 standards. Our commitment to quality, customization capabilities, and comprehensive certifications makes us the ideal partner for your Alloy 400 pipe requirements. For inquiries, please contact us at info@tsmnialloy.com.
