Understanding Hastelloy C276 Properties and Applications
Composition and Characteristics of Hastelloy C276
Hastelloy C276 is a remarkable nickel-chromium-molybdenum alloy known for its exceptional corrosion resistance and mechanical properties. This versatile material contains approximately 57% nickel, 16% chromium, 16% molybdenum, and small amounts of tungsten, manganese, and other elements. The unique composition of Hastelloy C276 gives it superior resistance to a wide range of aggressive environments, including oxidizing and reducing conditions.
One of the standout features of Hastelloy C276 is its excellent resistance to pitting and crevice corrosion, making it an ideal choice for applications involving chloride-containing media. The alloy also exhibits impressive strength and toughness across a broad temperature range, from cryogenic conditions to elevated temperatures exceeding 1000°C (1832°F). These properties contribute to its longevity and reliability in demanding industrial settings.
Common Applications of Hastelloy C276 Tubing
Hastelloy C276 seamless pipes and tubes find extensive use in various industries due to their exceptional performance characteristics. In the chemical processing sector, they are frequently employed in reactors, heat exchangers, and piping systems handling corrosive chemicals. The oil and gas industry relies on Hastelloy C276 tubing for downhole tools, wellhead components, and process equipment exposed to sour gas and other aggressive environments.
The alloy's resistance to hot contaminated mineral acids makes it valuable in pollution control systems and flue gas desulfurization units. In the pharmaceutical and food processing industries, Hastelloy C276 tubes are used in equipment that requires high purity and corrosion resistance. Additionally, the material's durability in seawater environments makes it suitable for marine applications, such as offshore platforms and desalination plants.
Importance of Quality Control in Hastelloy C276 Tube Production
Maintaining stringent quality control measures during the production of Hastelloy C276 tubes is paramount to ensuring their performance and reliability in critical applications. The manufacturing process involves precise control of the alloy composition, careful heat treatment, and meticulous forming techniques to achieve the desired properties and dimensional accuracy. Rigorous testing and inspection procedures are implemented at various stages of production to verify compliance with industry standards and customer specifications.
Quality control measures typically include chemical analysis, mechanical testing, non-destructive examination, and dimensional inspection. These steps help identify any deviations from the required specifications and ensure that only high-quality Hastelloy C276 tubing products reach the end-users. By adhering to strict quality control protocols, manufacturers can guarantee the consistency and reliability of their Hastelloy C276 tubes, contributing to the safety and efficiency of the systems in which they are installed.

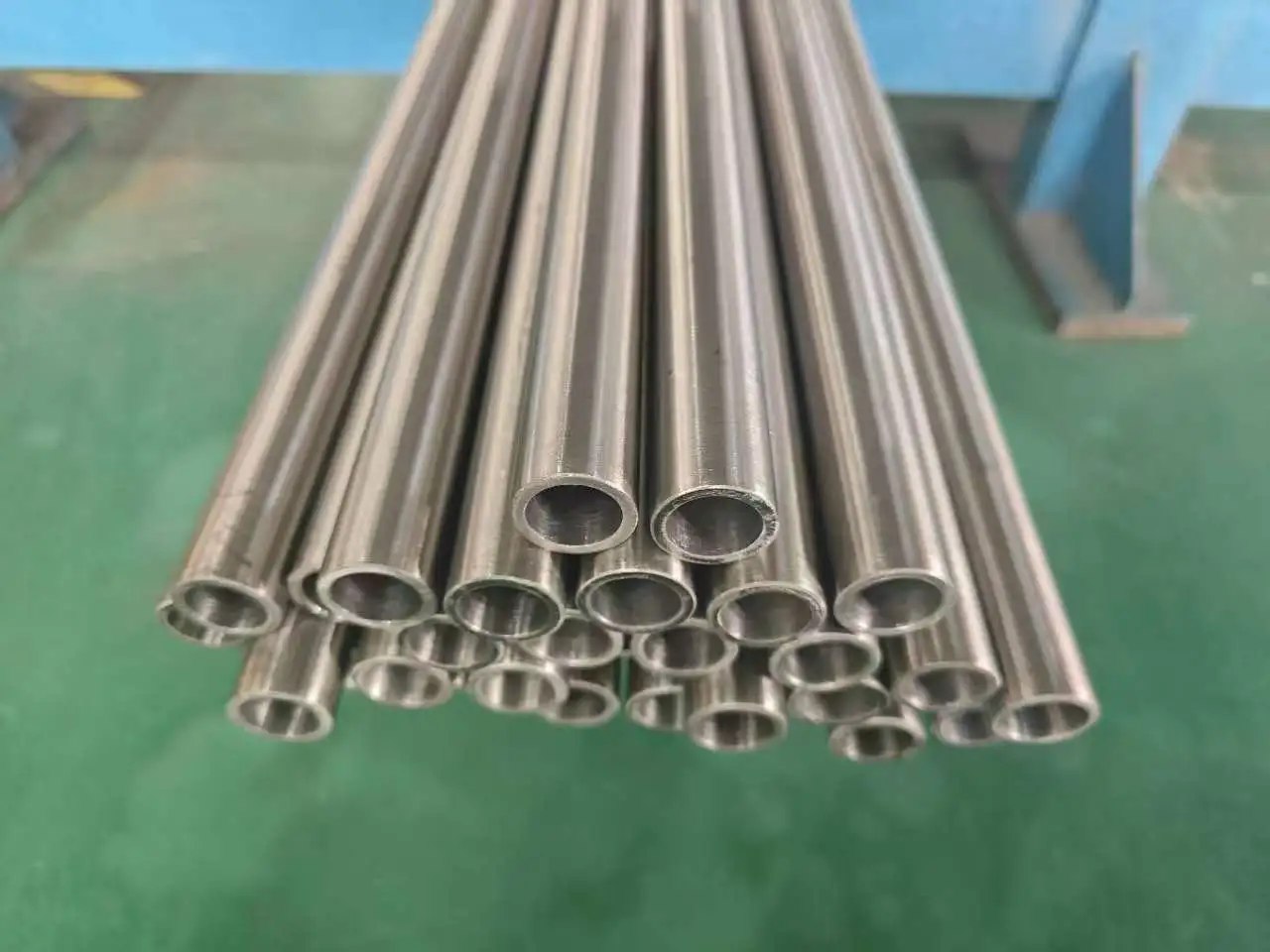

Visual Inspection Techniques for Hastelloy C276 Tubes
Surface Examination Methods
Visual inspection of Hastelloy C276 tubes begins with a thorough examination of the surface condition. Inspectors should use appropriate lighting, including both direct and oblique illumination, to reveal any surface irregularities. A magnifying glass or borescope may be employed to scrutinize finer details. The inspection should cover the entire length of the tube, including both the exterior and interior surfaces where accessible.
Key aspects to examine during surface inspection include:
- Smoothness: Check for any roughness, pits, or protrusions that deviate from the expected smooth finish of Hastelloy C276.
- Discoloration: Look for any unusual color changes that might indicate contamination or improper heat treatment.
- Mechanical damage: Identify any dents, scratches, or gouges that could compromise the tube's integrity.
- Weld quality: If applicable, inspect weld seams for uniformity, proper fusion, and absence of defects.
Dimensional Verification Procedures
Ensuring that Hastelloy C276 tubes meet the specified dimensional requirements is crucial for their proper function and fitment. Visual checks can provide a preliminary assessment of dimensional accuracy, which can be supplemented with precise measurement tools when necessary. Inspectors should verify:
- Outer diameter: Use calipers or micrometers to measure the tube's outer diameter at multiple points along its length.
- Wall thickness: Employ ultrasonic thickness gauges or sectioning techniques to confirm consistent wall thickness.
- Straightness: Visually assess the tube's linearity by rolling it on a flat surface or using a straightedge as a reference.
- Length: Measure the overall length and any cut-to-length specifications using appropriate measuring devices.
- End finish: Examine the tube ends for squareness, beveling, or other specified end preparations.
Identifying Common Defects in Hastelloy C276 Tubing
Visual inspection plays a crucial role in identifying potential defects that could affect the performance of Hastelloy C276 tubes. Inspectors should be trained to recognize and document the following common defects:
- Cracks: Look for any visible cracks, especially in areas subjected to stress during fabrication or use.
- Corrosion: Check for signs of pitting, crevice corrosion, or general surface degradation.
- Inclusions: Identify any visible foreign particles or non-metallic inclusions on the surface.
- Laminations: Detect any signs of material separation or layering, which could indicate improper processing.
- Surface imperfections: Note any laps, seams, or other surface irregularities that deviate from the expected finish.
- Weld defects: For welded tubes, inspect for issues such as undercut, overlap, or incomplete penetration.
By systematically examining Hastelloy C276 tubes for these potential defects, inspectors can ensure that only high-quality products are approved for use in critical applications.
Advanced Quality Assurance for Hastelloy C276 Tubing
Non-Destructive Testing Methods
While visual inspection serves as a crucial first step in quality assurance, advanced non-destructive testing (NDT) methods provide deeper insights into the integrity of Hastelloy C276 tubes. These techniques allow for thorough examination without compromising the material's usability. Common NDT methods employed for Hastelloy C276 tubing include:
- Ultrasonic Testing (UT): This method uses high-frequency sound waves to detect internal flaws, measure wall thickness, and identify potential areas of concern within the tube structure.
- Eddy Current Testing (ECT): ECT is particularly useful for detecting surface and near-surface defects in Hastelloy C276 tubes, as well as verifying material composition and heat treatment status.
- Radiographic Testing (RT): X-ray or gamma-ray imaging can reveal internal defects, such as voids or inclusions, that may not be visible through other inspection methods.
- Magnetic Particle Inspection (MPI): Although Hastelloy C276 is generally non-magnetic, MPI can be used on welds or areas that may have become slightly magnetic due to processing.
- Liquid Penetrant Testing (PT): This method is effective for detecting surface-breaking flaws and is particularly useful for examining weld areas and tube ends.
Automated Inspection Systems for Hastelloy C276 Tubes
To enhance efficiency and consistency in quality control, automated inspection systems are increasingly being employed for Hastelloy C276 tube inspection. These systems combine various technologies to provide a comprehensive and rapid assessment of tube quality. Key features of automated inspection systems include:
- Optical scanning: High-resolution cameras and advanced image processing algorithms detect surface defects and dimensional variations with high precision.
- Laser profiling: Laser-based systems measure tube geometry, including diameter, ovality, and straightness, with exceptional accuracy.
- Integrated NDT: Automated systems often incorporate ultrasonic or eddy current testing capabilities for simultaneous internal and external inspection.
- Data logging and analysis: Automated systems can record and analyze inspection data in real-time, providing detailed reports and traceability.
- Artificial intelligence: Machine learning algorithms can be trained to identify subtle defects and predict potential quality issues based on historical data.
Documentation and Traceability in Quality Assurance
Maintaining comprehensive documentation and ensuring traceability are essential aspects of quality assurance for Hastelloy C276 tubing. Proper documentation practices support compliance with industry standards, facilitate problem-solving, and provide a historical record of product quality. Key elements of documentation and traceability include:
- Material certification: Detailed records of the Hastelloy C276 alloy composition, heat treatment, and mechanical properties should be maintained for each batch of tubes.
- Inspection reports: Comprehensive reports documenting visual inspection findings, NDT results, and dimensional measurements should be generated and archived.
- Unique identification: Each Hastelloy C276 tube or batch should be assigned a unique identifier to enable tracking throughout its lifecycle.
- Process parameters: Records of manufacturing process parameters, including forming methods, heat treatment cycles, and welding procedures (if applicable), should be preserved.
- Calibration records: Documentation of the calibration status and maintenance history of all inspection equipment used in quality assurance processes.
- Non-conformance reports: Detailed accounts of any identified defects, their resolution, and corrective actions taken should be maintained for continuous improvement.
By implementing robust documentation and traceability systems, manufacturers and end-users can ensure the reliability and consistency of Hastelloy C276 tubing products, supporting their use in critical applications across various industries.
Conclusion
Performing thorough visual quality checks on Hastelloy C276 tubes is a critical step in ensuring the reliability and performance of this exceptional alloy in demanding applications. By combining meticulous surface examination, dimensional verification, and defect identification techniques, inspectors can maintain the high standards required for Hastelloy C276 tubing products. Advanced quality assurance methods, including non-destructive testing and automated inspection systems, further enhance the ability to detect and prevent potential issues. Proper documentation and traceability practices complete the quality assurance process, providing confidence in the integrity of Hastelloy C276 tubes throughout their lifecycle.
