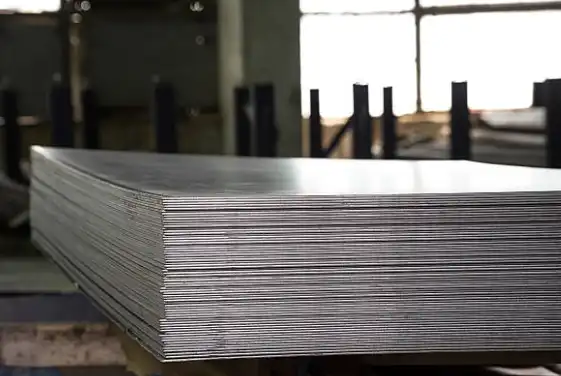

Incoloy 825 Sheet Microstructure and Metallurgical Features

Incoloy 825 sheet is a versatile nickel-iron-chromium alloy known for its exceptional corrosion resistance and mechanical properties. This alloy's microstructure and metallurgical features contribute significantly to its outstanding performance in various demanding environments. The Incoloy 825 plate exhibits a face-centered cubic (FCC) austenitic structure, which provides excellent ductility and toughness. Its unique composition, including additions of molybdenum, copper, and titanium, enhances its resistance to pitting, crevice corrosion, and stress corrosion cracking. Understanding these microstructural and metallurgical characteristics is crucial for engineers and manufacturers working with this high-performance material.

Microstructural Composition of Incoloy 825 Sheet

Austenitic Matrix

The foundation of Incoloy 825's microstructure is its austenitic matrix. This FCC crystal structure is stable across a wide range of temperatures, contributing to the alloy's excellent formability and weldability. The austenitic matrix also plays a crucial role in the material's non-magnetic properties, making it suitable for applications where magnetic interference must be minimized.

Grain Structure and Size

Incoloy 825 sheet typically exhibits a fine-grained structure, which enhances its strength and corrosion resistance. The grain size is carefully controlled during manufacturing processes such as hot rolling and annealing. Finer grains increase the material's yield strength and improve its resistance to intergranular corrosion by distributing chromium carbides more evenly along grain boundaries.

Precipitate Distribution

The distribution of precipitates within the Incoloy 825 microstructure significantly influences its properties. Titanium carbides and nitrides are intentionally formed to stabilize the alloy against sensitization. These precipitates help prevent the formation of chromium carbides at grain boundaries, which could otherwise lead to intergranular corrosion in certain environments.

Metallurgical Features Enhancing Incoloy 825 Performance

Solid Solution Strengthening

Incoloy 825 plate achieves much of its mechanical strength through solid solution strengthening. Alloying elements such as chromium, molybdenum, and copper dissolve into the austenitic matrix, generating lattice distortions that impede dislocation movement. This metallurgical mechanism enhances the material's yield strength and provides excellent work hardening capability. As a result, Incoloy 825 exhibits a favorable balance of strength and ductility, making it highly suitable for fabrication, forming, and demanding industrial applications where both mechanical robustness and malleability are required.

Passive Film Formation

A defining metallurgical characteristic of Incoloy 825 plate is its ability to develop a stable, self-repairing passive film on the surface. The alloy's high chromium content, typically between 19% and 23%, facilitates the formation of a thin, adherent chromium oxide layer. This passive film acts as a protective barrier, safeguarding the metal from a wide range of corrosive environments, including oxidizing and reducing conditions, sulfuric and phosphoric acids, and seawater. The self-healing nature of this film ensures long-term durability even when the surface is mechanically damaged.

Resistance to Localized Corrosion

The presence of molybdenum and copper in Incoloy 825 significantly enhances its resistance to localized corrosion phenomena. Molybdenum, at levels of 2.5% to 3.5%, strengthens the passive oxide layer and improves protection against pitting and crevice corrosion. Copper, added at 1.5% to 3%, provides additional resistance in reducing environments, particularly in the presence of sulfuric acid. These combined metallurgical features make Incoloy 825 an ideal choice for chemical processing, marine, and industrial applications where localized corrosion could compromise structural integrity.

Influence of Processing on Incoloy 825 Sheet Properties

Hot Working and Annealing

The hot working process of Incoloy 825 sheet is carefully controlled to achieve the desired microstructure. Hot rolling is typically performed at temperatures between 927°C and 1204°C (1700°F to 2200°F). Subsequent annealing treatments, usually conducted at temperatures around 940°C to 1010°C (1725°F to 1850°F), help to relieve internal stresses, recrystallize the grain structure, and ensure optimal distribution of alloying elements.

Cold Working Effects

Cold working can significantly alter the mechanical properties of Incoloy 825. The alloy responds well to cold forming operations, exhibiting substantial work hardening. This characteristic allows for the production of Incoloy 825 plates with a wide range of strength levels. However, care must be taken to avoid excessive cold working, which can lead to the formation of deformation-induced martensite and potentially impact the material's corrosion resistance.

Heat Treatment Considerations

Heat treatment plays a crucial role in optimizing the properties of Incoloy 825 sheet. Solution annealing, typically performed at temperatures between 1010°C and 1090°C (1850°F to 2000°F) followed by rapid cooling, ensures the dissolution of secondary phases and promotes a homogeneous microstructure. This treatment is essential for maximizing the alloy's corrosion resistance and maintaining its desirable mechanical properties.

Conclusion

The microstructure and metallurgical features of Incoloy 825 sheet are fundamental to its exceptional performance in corrosive environments and high-temperature applications. The austenitic matrix, controlled grain structure, and strategic alloying elements contribute to its superior mechanical properties and corrosion resistance. Understanding these characteristics is essential for engineers and manufacturers to fully leverage the capabilities of Incoloy 825 in demanding industrial applications. As material science continues to advance, further optimizations in processing and composition may lead to even more enhanced properties for this versatile alloy.

FAQs

What makes Incoloy 825 sheet resistant to corrosion?

Incoloy 825's corrosion resistance stems from its high chromium content, which forms a protective passive film, and additions of molybdenum and copper that enhance resistance to localized corrosion.

How does the microstructure of Incoloy 825 affect its properties?

The austenitic microstructure provides excellent ductility and toughness, while the fine grain size enhances strength and corrosion resistance.

Can Incoloy 825 be used in high-temperature applications?

Yes, Incoloy 825 maintains its properties at elevated temperatures, making it suitable for various high-temperature environments.
