Understanding Monel 400 Tube Properties and Machining Challenges
Composition and Mechanical Characteristics

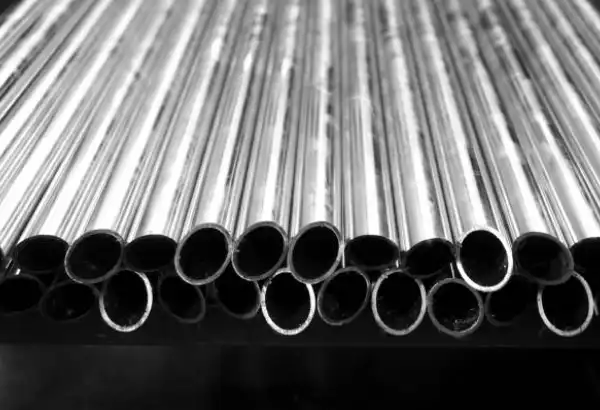

Monel 400 is a nickel-copper alloy containing approximately 63% nickel, 31% copper, and small amounts of iron, manganese, and silicon. This carefully engineered composition provides the tubing with outstanding corrosion resistance, particularly in harsh marine and chemical processing environments. However, these same characteristics that make it highly durable and reliable also present significant machining challenges. The high nickel content promotes work hardening during cutting, while the alloy’s toughness and ductility can create long, stringy chips, complicating machining and potentially affecting surface quality if not carefully managed.
Heat Generation and Thermal Conductivity
Monel 400 tubes exhibit relatively low thermal conductivity, which can result in heat accumulation at the cutting edge during machining. This localized heating accelerates tool wear, increases the risk of thermal deformation, and may cause dimensional inaccuracies in the final product. Effective management of heat generation and dissipation is therefore essential for maintaining consistent machining performance. Techniques such as optimized cutting speeds, appropriate coolant application, and tool material selection help minimize thermal effects, ensuring that Monel 400 tubing can be machined efficiently while preserving dimensional accuracy and surface quality.
Gummy Nature and Built-up Edge Formation
The inherently gummy nature of Monel 400 can lead to built-up edge (BUE) formation on cutting tools, a common machining challenge. BUE occurs when material adheres to the cutting edge, altering tool geometry and potentially compromising surface finish and dimensional accuracy. Minimizing this effect requires careful selection of cutting tools, appropriate coatings, and optimized machining parameters such as feed rate, speed, and depth of cut. Proper management of BUE formation ensures higher quality surface finishes and improves the overall efficiency and reliability of machining operations involving Monel 400 tubing.
Advanced Cutting Strategies for Monel 400 Tube Machining
Optimized Cutting Parameters
Successful machining of Monel 400 pipes requires careful optimization of cutting parameters. Generally, lower cutting speeds and higher feed rates are recommended compared to machining steel. Specific parameters will depend on the operation type, tool geometry, and workpiece dimensions. For turning operations on Monel 400 tubes, typical cutting speeds range from 30 to 80 m/min, with feed rates between 0.1 and 0.3 mm/rev.
Depth of cut should be carefully controlled to balance material removal rates with tool life and surface finish requirements. For roughing operations, depths of cut up to 3 mm may be used, while finishing passes typically employ depths of 0.5 mm or less. Experimentation and fine-tuning of these parameters are often necessary to achieve optimal results for specific Monel tubing applications.
High-Pressure Coolant Techniques
Implementing high-pressure coolant systems can significantly improve Monel 400 tube machining outcomes. Coolant pressures of 70 bar or higher directed precisely at the cutting edge help to efficiently remove heat, reduce friction, and improve chip evacuation. This approach is particularly effective for internal boring and drilling operations on Monel 400 pipes, where chip removal can be challenging.
When using high-pressure coolant, it's important to select a coolant formulation compatible with Monel 400 and the specific machining operation. Water-soluble synthetic coolants often provide the best combination of cooling and lubrication for nickel alloy machining.
Cryogenic Machining Solutions
Cryogenic machining using liquid nitrogen or carbon dioxide as a coolant offers promising results for Monel 400 tube processing. The extremely low temperatures help to counteract the heat generation issues associated with machining this alloy. Cryogenic cooling can significantly extend tool life, improve surface finish quality, and allow for higher cutting speeds compared to conventional cooling methods.
While cryogenic machining requires specialized equipment and safety precautions, it can be particularly beneficial for high-volume production of Monel 400 tubing components where tool wear and thermal management are critical factors.
Tooling Selection and Optimization for Monel 400 Tube Machining
Cutting Tool Materials and Coatings
Selecting appropriate cutting tool materials is crucial for successful Monel 400 tube machining. Carbide tools are commonly used due to their hardness and wear resistance. Specifically, fine-grained carbide grades with cobalt content between 6% and 12% offer a good balance of toughness and wear resistance for Monel alloy machining.
Tool coatings can further enhance performance when machining Monel 400 pipes. TiAlN (Titanium Aluminum Nitride) and AlCrN (Aluminum Chromium Nitride) coatings have shown excellent results, providing improved wear resistance and reducing the tendency for built-up edge formation. Multilayer coatings combining different materials can offer additional benefits by combining the advantageous properties of each layer.
Specialized Geometry for Nickel Alloys
Cutting tool geometry plays a significant role in addressing the challenges of Monel 400 tube machining. Tools designed specifically for nickel alloys often feature positive rake angles to reduce cutting forces and minimize work hardening. Sharp cutting edges help to cleanly shear the material, reducing the likelihood of built-up edge formation.
For turning operations on Monel tubing, inserts with a nose radius between 0.4 and 0.8 mm typically provide a good balance between edge strength and surface finish quality. Chip breaker geometries designed for ductile materials can help manage the long, stringy chips often produced when machining Monel 400.
Tool Holder Considerations
Rigid tool holding is essential for achieving optimal results when machining Monel 400 tubes. Hydraulic or heat-shrink tool holders can provide the necessary stability and precision for demanding nickel alloy machining operations. Minimizing tool overhang and ensuring proper alignment helps to reduce vibration and maintain consistent cutting conditions.
For internal machining of Monel 400 pipes, specialized boring bars with enhanced rigidity and damping characteristics can significantly improve performance. Carbide-shank boring bars or those utilizing composite materials offer superior vibration resistance compared to traditional steel tooling.
Conclusion
Mastering the machining process for Monel 400 tubes requires a comprehensive approach that addresses the unique challenges posed by this corrosion-resistant alloy. By implementing advanced cutting strategies, selecting appropriate tooling, and optimizing machining parameters, manufacturers can achieve high-quality results while maximizing productivity. Continued advancements in cutting tool technology and cooling techniques promise to further enhance the machinability of Monel 400 and similar nickel alloys, enabling more efficient production of critical components for marine, chemical processing, and aerospace applications.
FAQs
What are the key challenges in machining Monel 400 tubes?
The main challenges include rapid tool wear due to work hardening, heat buildup at the cutting edge, and the material's gummy nature leading to built-up edge formation.
What cutting speeds are recommended for Monel 400 tube machining?
Typical cutting speeds range from 30 to 80 m/min, depending on the specific operation and tooling used.
How can cryogenic machining benefit Monel 400 tube processing?
Cryogenic cooling can significantly extend tool life, improve surface finish quality, and allow for higher cutting speeds by effectively managing heat generation.
