Understanding Monel 400 Bar Properties and Composition
Chemical Composition of Monel 400
Monel 400 is a nickel-copper alloy renowned for its exceptional properties. The composition of this alloy typically includes 63-70% nickel, 28-34% copper, and small amounts of iron, manganese, silicon, and carbon. This unique blend of elements contributes to the material's outstanding corrosion resistance, especially in marine and acidic environments. The presence of nickel provides strength and ductility, while copper enhances the alloy's resistance to seawater and reducing acids.
Physical Properties of Monel
400 Round Bar

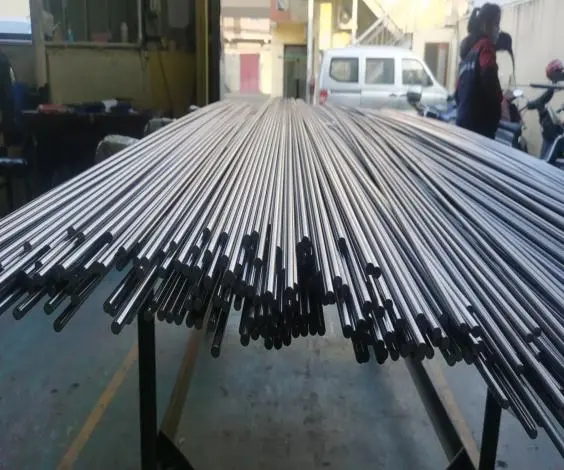

Monel 400 round bars exhibit remarkable physical properties that make them suitable for various applications. These bars have a density of approximately 8.8 g/cm³, which is slightly higher than that of steel. The melting point of Monel 400 ranges from 1300°C to 1350°C, allowing it to maintain its structural integrity at elevated temperatures. Additionally, Monel bars possess excellent thermal conductivity, with a value of about 21.8 W/(m·K) at room temperature, making them suitable for heat exchange applications.
Mechanical Characteristics of Monel Bar
The mechanical properties of Monel bars are particularly impressive. They demonstrate high tensile strength, typically ranging from 70 to 80 ksi (483 to 552 MPa) in the annealed condition. The elongation of Monel 400 is usually between 35-45%, indicating good ductility. This combination of strength and ductility makes Monel bars ideal for applications requiring both toughness and formability. Furthermore, the alloy's hardness, usually between 120-160 Brinell, contributes to its wear resistance, making it suitable for components subject to abrasion or erosion.
Yield Strength Evaluation Techniques for Monel 400 Bar
Tensile Testing Procedures
Tensile testing is a fundamental method for evaluating the yield strength of Monel 400 bars. This procedure involves applying a controlled, gradually increasing tensile load to a standardized specimen of the Monel round bar. The test is conducted using specialized equipment that measures the applied force and the resulting elongation of the specimen. As the load increases, the material initially exhibits elastic deformation, where it can return to its original shape upon load removal. The yield strength is determined at the point where the material transitions from elastic to plastic deformation, typically identified using the 0.2% offset method.
Strain Gauge Application in Yield Strength Measurement
Strain gauges offer a precise method for measuring the yield strength of Monel 400 bars and Monel bars. These sensitive devices are attached to the surface of the Monel specimen and measure the minute changes in electrical resistance that occur as the material deforms under stress. The data collected from strain gauges provides a detailed stress-strain curve, allowing for accurate determination of the yield point. This technique is particularly valuable for Monel 400, as it can capture the subtle transitions in material behavior that might be missed by less sensitive methods.
Non-Destructive Evaluation Techniques
Non-destructive evaluation (NDE) techniques play a crucial role in assessing the yield strength of Monel bars without compromising their integrity. Methods such as ultrasonic testing and eddy current analysis can provide insights into the material's properties. Ultrasonic testing uses high-frequency sound waves to detect internal flaws or variations in material properties that might affect yield strength. Eddy current analysis, on the other hand, can detect surface and near-surface defects that could influence the bar's mechanical performance. These NDE techniques are particularly valuable for in-service inspection of Monel 400 components, allowing for ongoing monitoring of material properties without the need for destructive testing.
Factors Influencing Yield Strength in Monel 400 Bar
Heat Treatment Effects on Yield Strength
Heat treatment significantly influences the yield strength of Monel 400 bars. Annealing, for instance, can reduce internal stresses and increase ductility, potentially lowering the yield strength but improving formability. Solution annealing, typically performed at temperatures around 1000°C followed by rapid cooling, can optimize the alloy's properties by dissolving precipitates and ensuring a uniform microstructure. Age hardening, though less common for Monel 400, can be employed to increase yield strength through the formation of fine precipitates. The precise control of heat treatment parameters is crucial in achieving the desired balance of strength and ductility in Monel round bars.
Grain Size and Microstructure Impact
The grain size and microstructure of Monel 400 bars play a vital role in determining their yield strength. Finer grain sizes generally result in higher yield strengths due to the increased number of grain boundaries that impede dislocation movement. The Hall-Petch relationship quantifies this effect, showing that yield strength is inversely proportional to the square root of grain size. In Monel 400, the face-centered cubic (FCC) crystal structure contributes to its ductility, while the presence of various strengthening mechanisms, such as solid solution strengthening from the copper content, influences the overall yield behavior.
Environmental Factors Affecting Yield Strength
Environmental conditions can significantly impact the yield strength of Monel 400 bars. Temperature is a critical factor, with yield strength generally decreasing as temperature increases. This relationship is particularly important in applications where Monel bars are subjected to thermal cycling or high-temperature environments. Corrosive media can also affect yield strength over time by altering the surface properties or causing stress corrosion cracking. While Monel 400 is renowned for its corrosion resistance, prolonged exposure to certain aggressive environments may lead to subtle changes in mechanical properties, including yield strength. Understanding these environmental influences is crucial for predicting the long-term performance of Monel bars in various applications.
Conclusion
The evaluation of yield strength in Monel 400 bars is a critical aspect of material characterization that ensures the alloy's optimal performance in diverse applications. Through rigorous testing methods, including tensile testing and advanced non-destructive techniques, engineers can accurately determine the point at which Monel 400 transitions from elastic to plastic deformation. This knowledge is invaluable for designing components that can withstand specific stress levels without permanent deformation. The yield strength of Monel 400 bars, typically ranging from 30 to 50 ksi, can be influenced by various factors including heat treatment, microstructure, and environmental conditions. By understanding these influences, manufacturers can tailor the properties of Monel 400 to meet specific application requirements, ensuring reliability and longevity in challenging environments.
FAQs
What is the typical yield strength range for Monel 400 bars?
Monel 400 bars typically have a yield strength ranging from 30 to 50 ksi (207 to 345 MPa).
How does heat treatment affect the yield strength of Monel 400?
Heat treatment can significantly influence yield strength. Annealing may lower yield strength while improving ductility, whereas solution annealing can optimize properties by ensuring a uniform microstructure.
Can environmental factors impact the yield strength of Monel 400 bars?
Yes, environmental factors such as temperature and exposure to corrosive media can affect yield strength over time. Higher temperatures generally decrease yield strength, while certain aggressive environments may alter mechanical properties.
