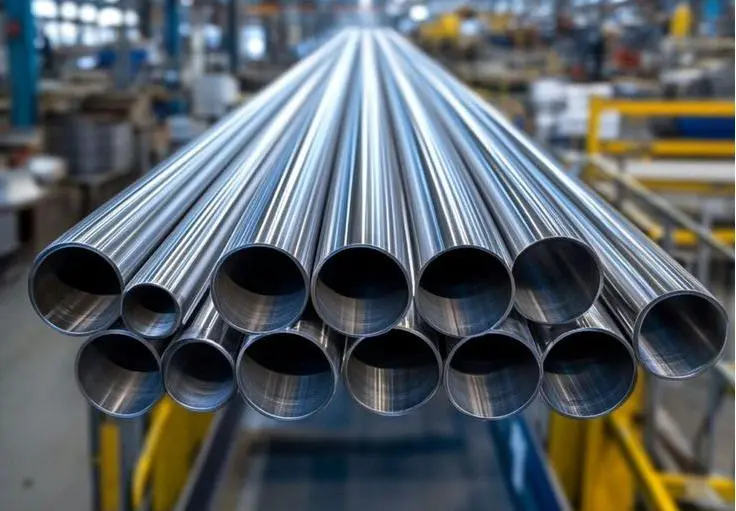

To select the correct Inconel 690 tube for high-temperature applications, you must carefully consider the material's properties, the working conditions, and the supplier's capabilities. This nickel-chromium-iron superalloy is very resistant to rust and stable at high temperatures. This makes it perfect for use in nuclear power plants, chemical processing, and spacecraft. To be successful, you need to ensure that the tube's specifications meet the needs of your surroundings while also meeting industry requirements and remaining affordable throughout the part's service life.
Understanding Inconel 690 Tube and Its Key Properties
To make the right choice, you need to know what makes Inconel 690 tubes different from other high-performance metals. This nickel-chromium-iron superalloy is made up of at least 58% nickel, 28% to 31% chromium, and 9–11% iron. It is designed to work in harsh conditions.
Chemical Composition and Material Characteristics
The carefully balanced chemical makeup of Inconel 690 gives it amazing performance qualities. The alloy makes a steady oxide layer that is very resistant to rust because it has between 28 and 31% chromium. The nickel base makes the metal very stable at high temperatures, and the managed carbon content (up to 0.05%) keeps carbide precipitation to a minimum. This makes the metal more resistant to rusting in hot places.
With this mix, the material has a density of 8.19 g/cm³ and a melting point range of 1343–1377°C, so it can be used in places where temperatures go up to 700°C. The metal keeps its shape even when it goes through temperature cycles, which happens a lot in equipment used to make electricity and chemicals.
Mechanical Properties and Performance Standards
Engineers can choose the right tube sizes and shapes by understanding the mechanical features. Inconel 690 has a minimum tensile strength of 655 MPa, a minimum yield strength of 275 MPa, and a minimum stretch of 30%. These qualities don't change much at different temperatures, so they can be relied on to work well in tough situations.
Because the material is so easy to work with, it can be used to make smooth tubes with very tight limits on size. These tubes come in outside sizes ranging from 6.0 mm to 114 mm and wall thicknesses ranging from 0.5 mm to 15 mm. They can be changed to fit specific application needs while still keeping their structural integrity.
Comparing Inconel 690 tube with Alternative Alloys
To make smart choices about materials, you need to know how the Inconel 690 tube compares to other extremely hot metals. Each material has its own benefits that depend on the needs of the product and the situations under which it is used.
Inconel 690 versus Inconel 600 and 625
The 690 metal is better than Inconel 600 because it is less likely to crack from stress rust and works better in high-temperature water settings. Inconel 690's higher chromium content makes it more resistant to rust, which is especially useful in nuclear steam generator uses where dependability over the long term is very important.
Inconel 625 is very strong at high temperatures, but Inconel 690 is much better in settings with water damage. Which of these metals you choose will depend on your needs.
Performance Against Stainless Steel and Titanium Alternatives
At first glance, stainless steel tubes may seem like a good deal, but they aren't stable at high temperatures and don't fight rust well enough for extreme uses. Even though it costs more at first, Inconel 690 has better long-term value because it keeps its qualities at temperatures where stainless steel would fail.
Titanium metals are very strong for their weight and don't rust easily, but they are harder to work with and don't stay stable at high temperatures as well as Inconel 690. This makes it a better choice for most commercial high-temperature uses. Because Inconel 690 is so easy to weld and machine, it also makes production and upkeep easier.
Key Selection Criteria for High-Temperature Tubes
To choose the right tubes, you need to carefully consider a lot of different factors that affect their performance, dependability, and affordability. These factors help match the skills of the material with the needs of the application being used.
Operating Environment Assessment
The main decision factor is temperature needs, but the complexity of the working world goes beyond simple temperature ranges for an Inconel 690 tube. Think about how often the temperature changes, how fast it heats up and cools down, and how long it stays at the same level. Inconel 690 works very well in places where conditions can reach 700°C and stays stable when it fluctuates in temperature.
Choices are also affected by the amount of pressure needed and how well the fluid will work with the product. Because it doesn't crack under stress, the material is perfect for high-pressure steam uses that are popular in power generation. Chemical compatibility with process fluids guarantees long-term performance without worries about wear and tear or leakage.
Industry Standards and Certification Requirements
Following the rules set by the industry guarantees the quality of the materials and their dependability in use. To meet the stringent specifications for nuclear and chemical uses, Inconel 690 tubes made to ASTM B622, ASME SB622, and EN 10095 standards are used. The limits for sizes, material qualities, and testing needs are all spelled out in these guidelines.
Material Test Certificates (MTC) and third-party testing records are examples of quality certificates that show where a product came from and that it works as promised. For example, RCC-M conformance may be needed for nuclear applications, while AS9100D assurance system agreement is needed for aircraft applications.
Construction Methods and Heat Treatment Considerations
When used in high-pressure situations, seamless construction is more reliable than bonded joints because there are no weak spots. The smooth production method also improves the accuracy of dimensions and the quality of the outer finish, all of which lowers the need for upkeep.
Heat treatment efficiency enhances durability to corrosion and mechanical characteristics. With the right annealing processes, production pressures are relieved and grain structure is optimized for the best performance. For some uses, surface processes like sanding, electropolishing, or chemical cleaning can make something even more resistant to rust and easier to clean.
Procurement and Supplier Evaluation for Inconel 690 tubes
Finding dependable sources who can consistently offer high quality Inconel 690 tube products becomes very important for the project's progress. The skills, production ability, and quality processes employed by a supplier have a direct effect on the performance of materials and the timeliness of a project.
Supplier Capabilities and Quality Assurance
Manufacturing knowledge has a big effect on the quality of the product and how reliably it is delivered. Suppliers who are good at melting, casting, and precise cutting can keep tight limits on dimensions and make sure that the metal is always the same. Look for providers that run modern factories with quality control systems and separate production lines.
With 14 years of experience making quality alloys, TSM Technology has some of the best industrial skills in the business. Our 50,000▥ building has 8 manufacturing facilities with more than 100 precise tools that can make 300 tons of goods every month. Our ISO 9001 and AS9100D approvals show that we are dedicated to high achievement.
Ultrasonic checking, radiography testing, and electric current examination are just some of the testing methods that can be used to make sure that every tube fulfills the requirements. Full material tracking paperwork gives you trust in the qualities and performance of the material.
Customization Options and Technical Support
Application-specific specifications often require particular measurements, surface treatments, or particular testing. Suppliers that offer full modification capabilities can make sure that the tube specifications meet your exact requirements while still being cost-effective.
Having technical support during the whole buying process helps answer questions about specifications and make the best material choices. Having access to metallurgy experts and application engineers makes sure that the right materials are chosen and that the project goes smoothly.
Conclusion
To choose the correct Inconel 690 tube, you need to balance the scientific requirements with the needs of the application, the quality standards, and the supplier's skills. The material works very well at high temperatures and doesn't rust, so it's perfect for important uses where rejection is not a choice. To be successful, you need to carefully look at the working conditions, make sure you follow the rules, and work with sellers who have experience and know what you need.
From now on, work with skilled sellers as soon as possible during the planning phase of your projects. Ask for clear specs, quality certifications, and expert help to make sure you choose the right materials and can put the project into action successfully.
FAQs
1. Which fields use Inconel 690 tubes the most?
The biggest use is for nuclear power, especially for the heat transfer tubes in steam generators. Because they don't rust or change temperature easily, these tubes are also used in petroleum processes, aircraft rocket engines, and high-temperature electricity-producing equipment.
2. How does its rust resistance compare to that of other high-nickel alloys?
Stress corrosion cracking is less likely to happen in Inconel 690 than in Inconel 600, especially in water settings with high temperatures. The higher chrome content makes it more resistant to oxidation, and the improved makeup makes it less likely to rust between grains in nuclear uses.
3. How long does it usually take to get a special order of Inconel 690 tube?
Standard-sized tubes usually ship between 2 and 4 weeks, but custom-sized tubes may take 6 to 8 weeks, based on how complicated they are. Lead times can go up to 10 to 12 weeks for large sales or tests that need to be done in a certain way. Early planning for buying helps make sure that important projects are delivered on time.
Partner with TSM Technology for Premium Inconel 690 tube Solutions
TSM Technology is ready to help you with your high-temperature tube needs with the best production and technical know-how in the business. We are a reliable provider of Inconel 690 tubes. With 14 years of experience working with this metal, as well as modern production infrastructure and strict quality systems, we can make sure you get the best goods for your most difficult uses.
Our wide range of products includes seamless tubes with wall thicknesses ranging from 0.5 mm to 15 mm and outer diameters from 6.0 mm to 114 mm. All of these are made to meet the standards set by ASTM B622, ASME SB622, and EN 10095. We can make any changes you want, so the specs are perfect for your needs. We can also produce 300 tons of products every month, which means we can handle both small and big jobs.
Are you ready to talk about your Boron 690 tube needs? During the whole process of selection and purchase, our technology team gives you expert advice. You can email us at info@tsmnialloy.com to get prices, detailed details, or help with engineering.
