Understanding Hydrogen Embrittlement Resistance in Monel K500 Pipe

Understanding the resistance to hydrogen embrittlement in Monel K500 pipe is very important for engineers working in the petrochemical, naval, and aircraft industries. This special nickel-copper alloy is very resistant to breaking down when hydrogen is added because it has a unique microstructure that is strengthened by precipitation and an optimized chemical makeup. When you properly heat treat Monel K500 pipe, its natural metallurgical qualities protect it from hydrogen absorption and the mechanical problems that happen when other materials are exposed to corrosive conditions.

Introduction to Monel K500 Pipe and Hydrogen Embrittlement

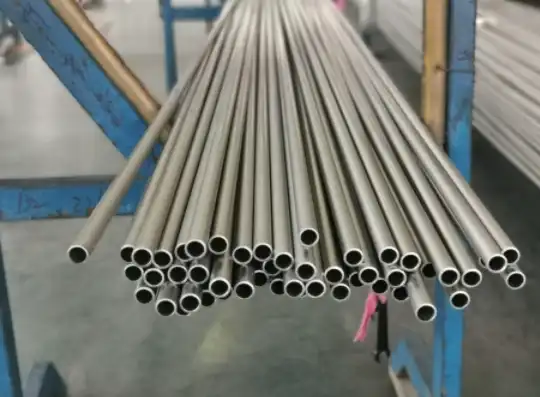

Monel K500 pipe is made of a high-quality nickel-copper combination that was made to work in harsh situations where other materials would fail. This metal can become stronger over time. It is mostly made up of nickel (63-67%), copper (27–33%), and aluminum and titanium, which help the alloy become stronger through precipitation. The final product has a tensile strength of up to 1100 MPa and is very resistant to corrosion in seawater, chemical processing conditions, and aircraft uses.

Hydrogen embrittlement is a big problem for metal parts that work in places with a lot of hydrogen. This happens when hydrogen atoms get into the metal matrix and build up at grain borders and flaws, making the metal less flexible and more likely to break in a big way. The effects go beyond instant safety worries; they also have long-term effects on the dependability of operations and the cost of maintenance for key infrastructure.

Metallurgical Foundation of Monel K500

Monel K500 has a special mix of elements that make it have a face-centered cubic crystal structure that naturally stops hydrogen from moving through it. Ni3Al and Ni3Ti form the γ' phase during age hardening. This creates a fine-scale microstructural barrier system that successfully traps and immobilizes hydrogen atoms before they can build up at key stress concentration sites.

Standards for manufacturing like ASTM B165 and ASME SB165 make sure that the metallic qualities are the same from one production batch to the next. These rules describe the acceptable ranges for chemical makeup, the necessary mechanical properties, and the testing methods that prove resistance to hydrogen embrittlement. Different types of pipes, seamless and welded, have different benefits. Seamless pipes can handle higher pressures, while welded pipes can be used in cost-effective large-diameter uses.

Environmental Factors Affecting Performance

In industrial settings, there are many sources of hydrogen that can damage materials, such as Monel K500 pipe. Electrochemical processes can make hydrogen in cathodic protection devices, which are often used in marine settings. When hydrocarbons, acids, and alkaline solutions are used in chemical processes, they cause more exposure risks. Changes in temperature, pressure, and mechanical force all have an effect on how quickly hydrogen is taken up and how easily it can cause the material to become weak.

Causes and Mechanisms of Hydrogen Embrittlement in Monel K500 Pipes

Conditions in the environment are the main causes of hydrogen embrittlement in industrial pipe systems. Being exposed to seawater, especially on offshore sites and naval boats, sets off electrochemical processes that help hydrogen to be made through corrosion. Hydrogen production and absorption rates are sped up in chemical working areas that contain hydrogen sulfide, hydrochloric acid, or caustic solutions.

The unique microstructure of Monel K500 that has been stiffened by age affects how it interacts with hydrogen atoms in a number of ways. The grid that is strengthened by precipitation makes a network of coherent and semi-coherent precipitates that act as hydrogen-sequestering sites. In contrast to damaging buildup at grain boundaries, this controlled trapping stops hydrogen from moving to areas of high stress, which is where cracks usually start.

Stress-Induced Acceleration

Mechanical stresses greatly increase the likelihood of hydrogen embrittlement by causing forces that push hydrogen to move and build up. When tensile stresses are higher than 60% of the yield strength, hydrogen transport mechanisms start to work. High-risk areas are also created where stresses are concentrated at welds, fits, and geometric breaks. Cyclic stress, which happens a lot in pressure vessels and pipes, can push hydrogen into the material through fatigue-assisted diffusion.

The connection between applied stress and hydrogen embrittlement can be predicted, which helps engineers make assessments and come up with ways to stop it. Stress strength factors and hydrogen concentration readings can be used together to get a rough idea of how long something will last and how often it needs to be inspected. This data-driven method lets you plan preventative maintenance and lower the chance of problems in key infrastructure systems.

Microstructural Influence on Hydrogen Behavior

The structure of precipitation-hardened Monel K500 pipe makes hydrogen interact on many length scales. Coherent precipitates provide reversible hydrogen trapping sites that keep hydrogen from building up in more dangerous places. The nickel-rich structure naturally doesn't dissolve hydrogen as well as ferritic steels do, which lowers the total rate at which hydrogen is taken in under the same exposure conditions.

Grain border chemistry is a very important part of resistant to hydrogen embrittlement. Adding aluminum and titanium to Monel K500 makes helpful precipitates that strengthen the edges of the grains and stop hydrogen from helping them crack. Monel K500 is different from other austenitic stainless steels because it uses microstructural engineering instead of solid solution stiffening.

Evaluating and Enhancing Hydrogen Embrittlement Resistance in Monel K500 Pipe

When using Monel K500, heat treatment improvement is the best way to make it more resistant to hydrogen embrittlement. The aging process has to find a balance between getting stronger and keeping the right amount of hardness and flexibility. Controlled aging at 593°C for 8 to 16 hours makes the best spread of precipitates that improves both mechanical qualities and hydrogen resistance.

Testing methods give numbers that show how resistant something is to hydrogen embrittlement in a variety of service situations. The ASTM F519 sets standard methods for testing for hydrogen embrittlement, and the NACE guidelines cover specific needs for oil and gas uses. These testing methods check the minimum stress levels, the speed at which cracks appear, and the time until failure when hydrogen is present.

Advanced Testing Methodologies

These days, testing for hydrogen embrittlement uses complex methods that mimic real-life working conditions. Slow strain rate testing (SSRT) checks how much the material's flexibility decreases when it is charged with hydrogen. This gives a clear reading of how likely it is to become weak. Electrochemical permeation testing measures how fast hydrogen moves and how well it is trapped, which lets you guess how well it will work in the long run.

To find the key stress intensity limits in fracture mechanics, crack growth rate measurements are taken while hydrogen is present. These ways give engineers information they can use to build parts and guess how long they will last. When you combine tests in the lab with experience in the field, you get a full picture of performance boundaries and safety factors.

Quality Assurance Integration

Hydrogen embrittlement is taken into account throughout the whole production and installation process by comprehensive quality assurance programs. Hydrogen embrittlement test data from approved labs must be included in the certification of incoming materials. To make sure the joint is strong, welding processes need to be qualified under hydrogen charging conditions.

Ultrasonic testing and other non-destructive testing methods can find hydrogen-induced cracking in Monel K500 pipe before it leads to a catastrophic failure. Regular inspections based on service conditions and risk assessment make sure that damage is found early. This proactive method cuts down on unplanned downtime and safety issues in vital infrastructure as much as possible.

Comparison of Monel K500 Pipe with Alternative Materials for Hydrogen Embrittlement Resistance

When choosing materials for uses that are likely to involve hydrogen, it's important to look at more than just how well they fight hydrogen embrittlement. Monel K500 is different from other materials because it can age-harden, prevent rust, and not be damaged by hydrogen.

The K500 version of Monel 400 is much stronger than the 400 version thanks to precipitation hardening, but it still resists rust just as well. The additions of aluminum and titanium make the alloy stronger, almost as strong as precipitation-hardened stainless steels. At the same time, the nickel-copper base alloy still has great resistance to rust in salt water.

Performance Comparison Matrix

Due to their austenitic structure and high strength levels, Inconel metals do better in settings where oxygen is present at high temperatures. However, they are more likely to become weak when exposed to water. Hastelloy metals are better at withstanding certain chemical conditions, but they usually cost more to buy and need special welding techniques.

Stainless steel options, especially duplex grades, are good at resisting hydrogen embrittlement, but they aren't as good at resisting rust as Monel K500 is in settings with chloride. Precipitation-hardened stainless steels are very strong, but they often give up their flexibility and toughness, which makes them more likely to crack under stress with the help of hydrogen.

Economic Considerations

A life-cycle cost study looks at how much the materials cost at the start, how long they are expected to last, how often they need to be maintained, and how much they cost to make. Monel K500 usually costs more than stainless steel options, but it lasts longer in settings that are prone to corrosion. The lower total cost of ownership often makes up for the higher original investment because it requires less upkeep and lasts longer between replacements.

When choosing materials, availability and the supply chain are important things to think about, especially for big projects that need to stick to regular shipping dates. Monel K500 pipe's production capacity and global distribution networks make sure that important applications can always get what they need. However, the time it takes to get custom specs can be longer because of the special testing and licensing requirements.

Procurement Considerations for Monel K500 Pipe with Superior Hydrogen Embrittlement Resistance

To successfully buy Monel K500 pipes for hydrogen-resistant uses, you must first qualify the suppliers you work with. Manufacturers who want to be certified must show that they follow industry standards, keep up with quality management systems, and give detailed records of material features and test results.

When evaluating a company's manufacturing skills, it's important to look at their production capacity, their ability to meet specific size and finish standards, and their ability to do specialized processing like heat treatment and non-destructive examination. Premium sellers are different from commodity providers because they can offer unique solutions and expert help throughout the project.

Quality Documentation Requirements

The material test certificates must have full chemical analyses, verifications of mechanical properties, and hydrogen embrittlement test reports. Third-party testing and review adds to the confidence that the materials will meet the project's requirements. Traceability paperwork lets you keep track of where the raw materials come from all the way to the end user. This helps with quality investigations and following the rules.

For hydrogen-resistant applications, the welding process requirements and welder qualifications need extra care. Suppliers should offer qualified welding methods that keep the hydrogen embrittlement strength of the base material in welded parts. The standards for post-weld heat treatment and inspection must match the design codes and operation conditions.

Global Supply Chain Management

Some things to think about when buying internationally are how to get the goods there, what the customs rules are, and what the area certification standards are. The worldwide network of TSM Technology's distributors covers more than 70 countries, making sure that the company can handle its supply chain well and offer technical help in each area. We have three factories and eight production lines, so we can handle big tasks without any problems.

Managing lead times means making sure that the supply of materials, production plans, and project deadlines all work together. Long-term deals and early involvement with suppliers can help ensure priority allocation during times of high demand. Emergency supply choices and faster handling options give projects the freedom they need to meet urgent needs.

Conclusion

Monel K500 pipe is resistant to hydrogen embrittlement because of the way the metal is made, its microstructure, and the best conditions for making it. The structure that was hardened by precipitation makes efficient hydrogen traps while keeping the high corrosion resistance that makes the Monel family of metals unique. Understanding these basic connections helps people choose the right materials and come up with the right specifications for important uses in the aircraft, marine, and petroleum industries. The right way to buy things makes sure that you can get certified materials that meet strict performance standards and are safe and reliable for a long time in tough work settings.

FAQ

1.What makes Monel K500 pipe resistant to hydrogen embrittlement?

The strength of Monel K500 comes from its composition, which is precipitation-hardened and has aluminum and titanium added to it. These elements come together to make orderly precipitates that trap hydrogen atoms. This keeps them from building up at the edges of grains, which is where cracks usually start. Compared to ferritic steels, the nickel-rich matrix has a naturally low hydrogen solubility.

2.How does heat treatment affect hydrogen embrittlement resistance?

Controlled aging heat treatment at 593°C improves the spread of precipitates to make the material stronger and more resistant to hydrogen. The right heat treatment makes tiny walls in the structure that stop hydrogen atoms from moving while keeping the material flexible enough. When heat treatment is done wrong, it can make microstructures more vulnerable and less resistant to being broken down.

3.Which testing standards validate hydrogen embrittlement resistance?

ASTM F519 sets standard methods for tests for hydrogen embrittlement, and NACE standards cover oil and gas uses. These tests check the amounts of threshold stress, the speed at which cracks form, and the change in flexibility that happens when hydrogen is present. For correct performance predictions, testing should be done in situations that are similar to real service.

Partner with TSM Technology for Superior Monel K500 Pipe Solutions

TSM Technology offers certified Monel K500 pipe systems that are designed to work in harsh industrial settings where hydrogen is present. With 14 years of experience making specialized alloys and ISO 9001 and AS9100D certifications, we can guarantee quality and performance that meets the strict needs of the aircraft, naval, and petrochemical industries. As a reliable Monel K500 pipe provider, we keep a large stock of pipes with outside diameters (OD) ranging from 6.0 mm to 324 mm and wall thicknesses ranging from 0.5 mm to 30 mm. All of our pipes are made to meet ASTM B165 and ASME SB165 standards.

Contact our technical experts at info@tsmnialloy.com to talk about your unique needs for hydrogen embrittlement protection and get personalized material suggestions. We offer free examples, full material certifications, and expert advice to make sure the material is right for your important projects.
